RVC 2-33 CD

Using the RVC

Version 01/2009, Rev. 1.21 of 25/11/2013 - sb

Translation of the original operating manual

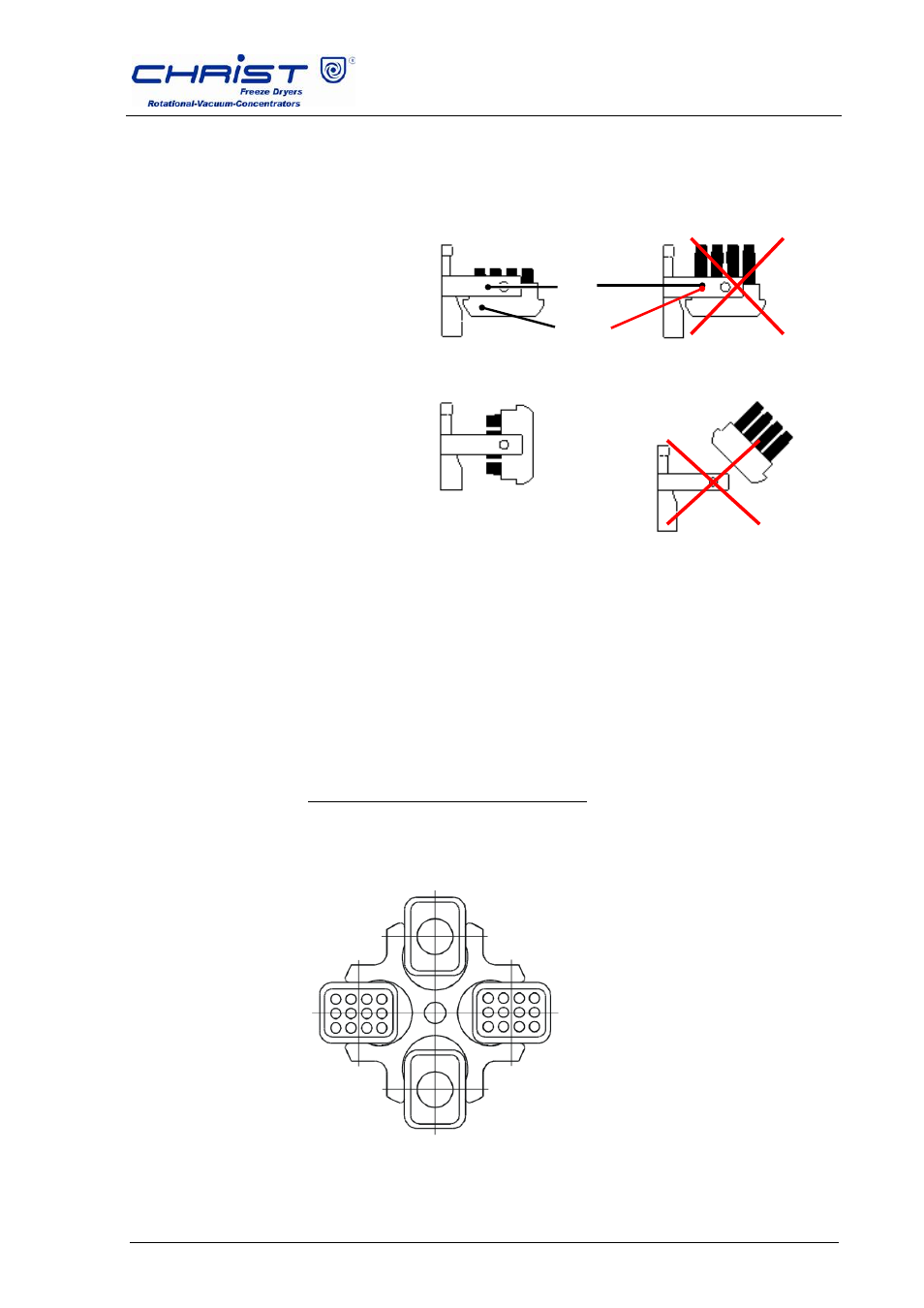

The balance point of the loaded bucket must be located
considerably below the pivotal point. If the balance point is too
near the pivotal point, the loaded bucket can be levered out of
the bearings. (see fig. 6.4).

correct

incorrect

at a standstill

1 Pivotal point
2 Balance point

under rotation

Fig. 6.4: Loading of buckets considering the balance point

6.2.3.4

Loading of Swing-out Rotors

In swing-out rotors, all places of a rotor must be loaded with
buckets.

Always load the rotor symmetrically with the same accesories
and fill to avoid imbalance.

Evaporation with different tube sizes: Working with different tube
sizes is possible. In this case, however, it is very important that the
inserts are installed symmetrically (see Fig. 6.5).

Fig. 6.5:
Permissible loading of the swing-out
rotor with different tube sizes
