possible. Allow sufficient wire length so that the R/D CONNECTOR can be removed from the card rack
and positioned so the R/D BOARD can be removed from and inserted into the card rack.

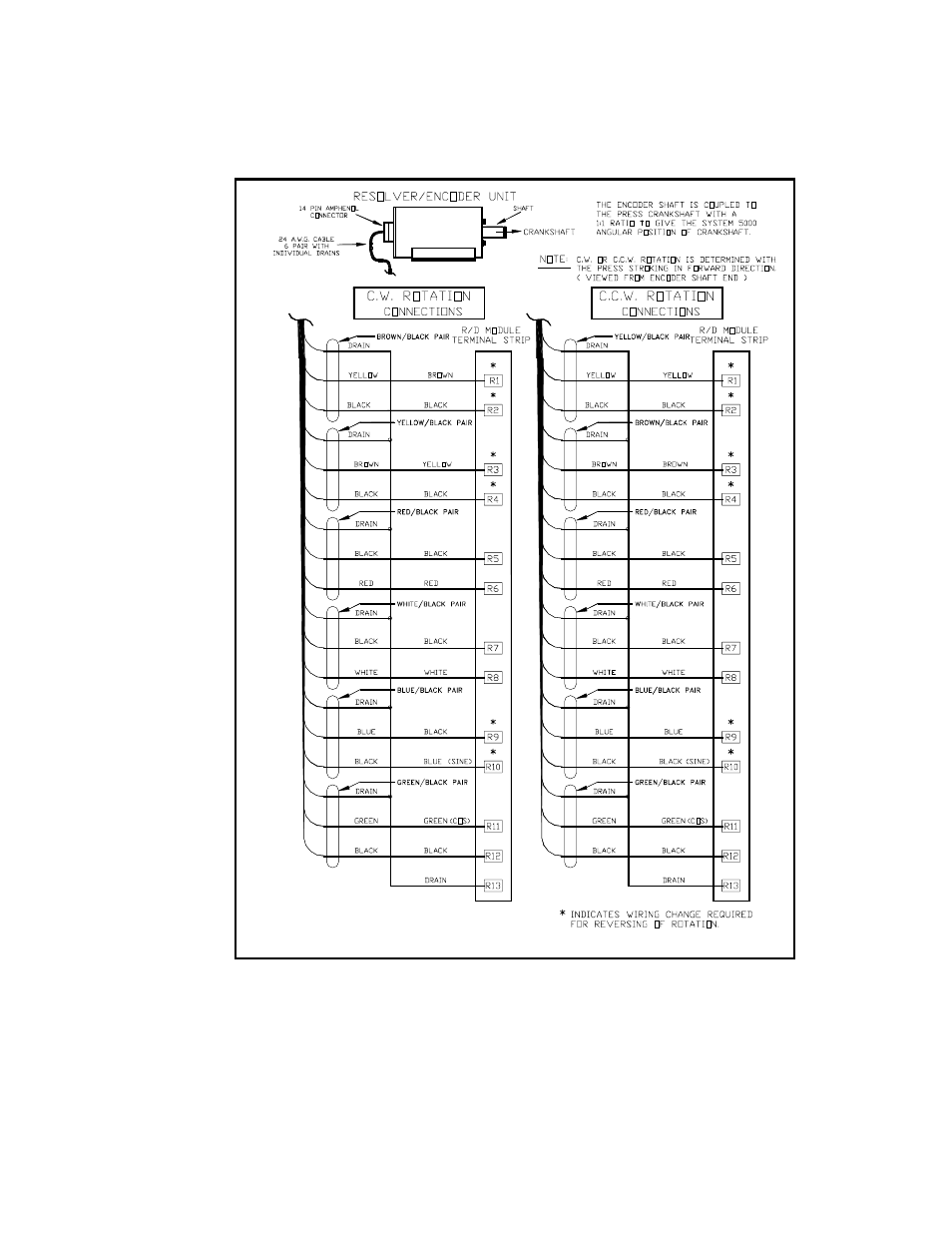

Figure 7.10 Resolver/Encoder Wiring
Section 7.2.4 Inputs
The field connections for the system 5000's inputs are +24 volt DC. The connections to inputs 1-24, 25-
48, and optionally 49-72 MUST NEVER be connected to 120 VAC. Each input card provides a +24 volt
