PE Series Operator’s Manual C-1
Appendix C
Cable Listing
When a serial interface between the Printer and host is used, a serial
cable meeting specific pin assignments is required. Configurations
for typical interfaces are shown below, (contact your distributor for
ordering information). The parallel interface connection can be
made using a Centronics® parallel interface cable.
Null Modem or Straight Cable
(MXM)
“PC” (DB25P) to Printer
“PC” (DB9P) to Printer RS-422 Connection

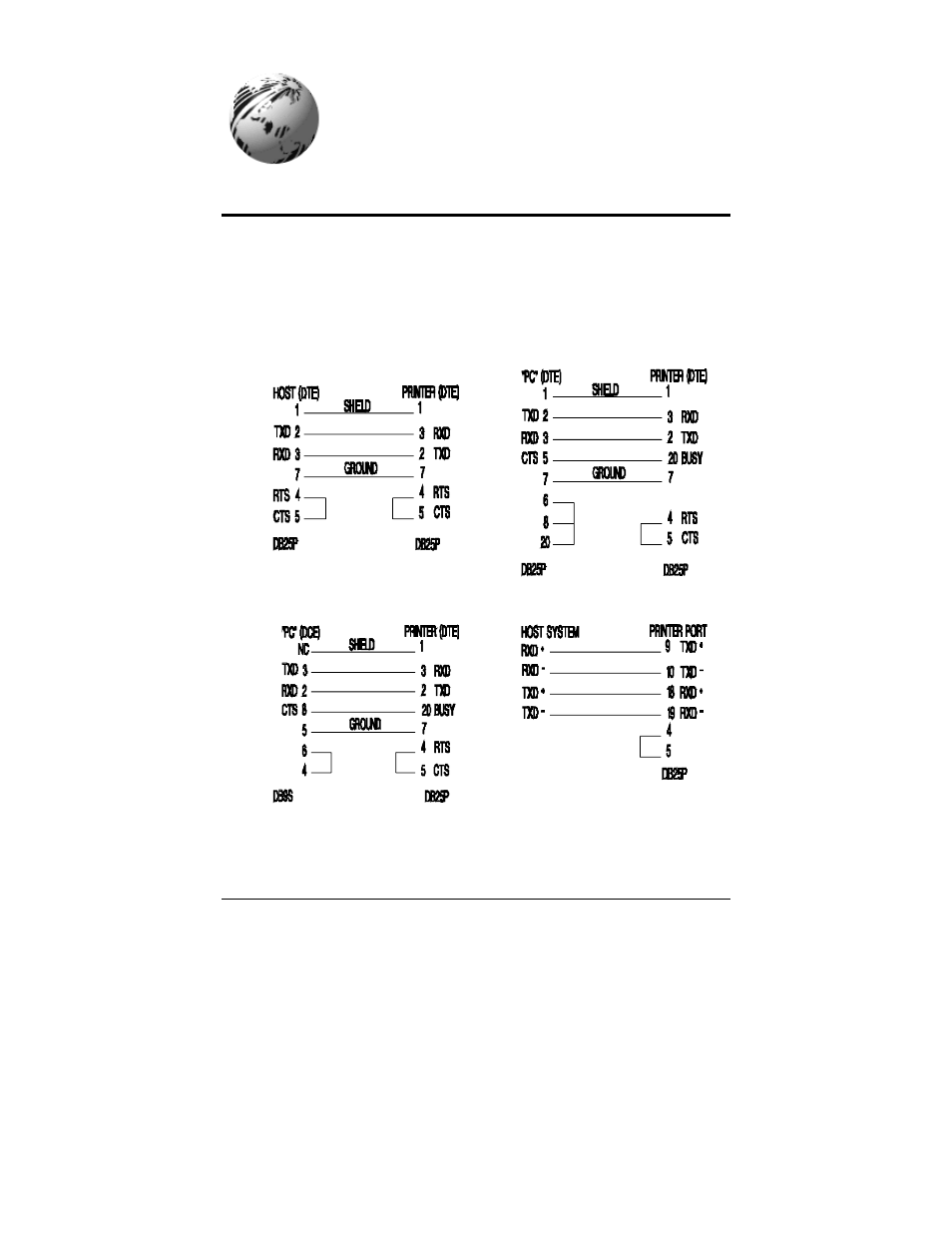

Table C-1 Serial Cable Requirements
