PE Series Operator’s Manual 10
3.2 Loading Media
This section explains the loading of media.
n Move the Head-Lift Lever ‘up’ to raise the printhead, as
shown in Figure 3-2.

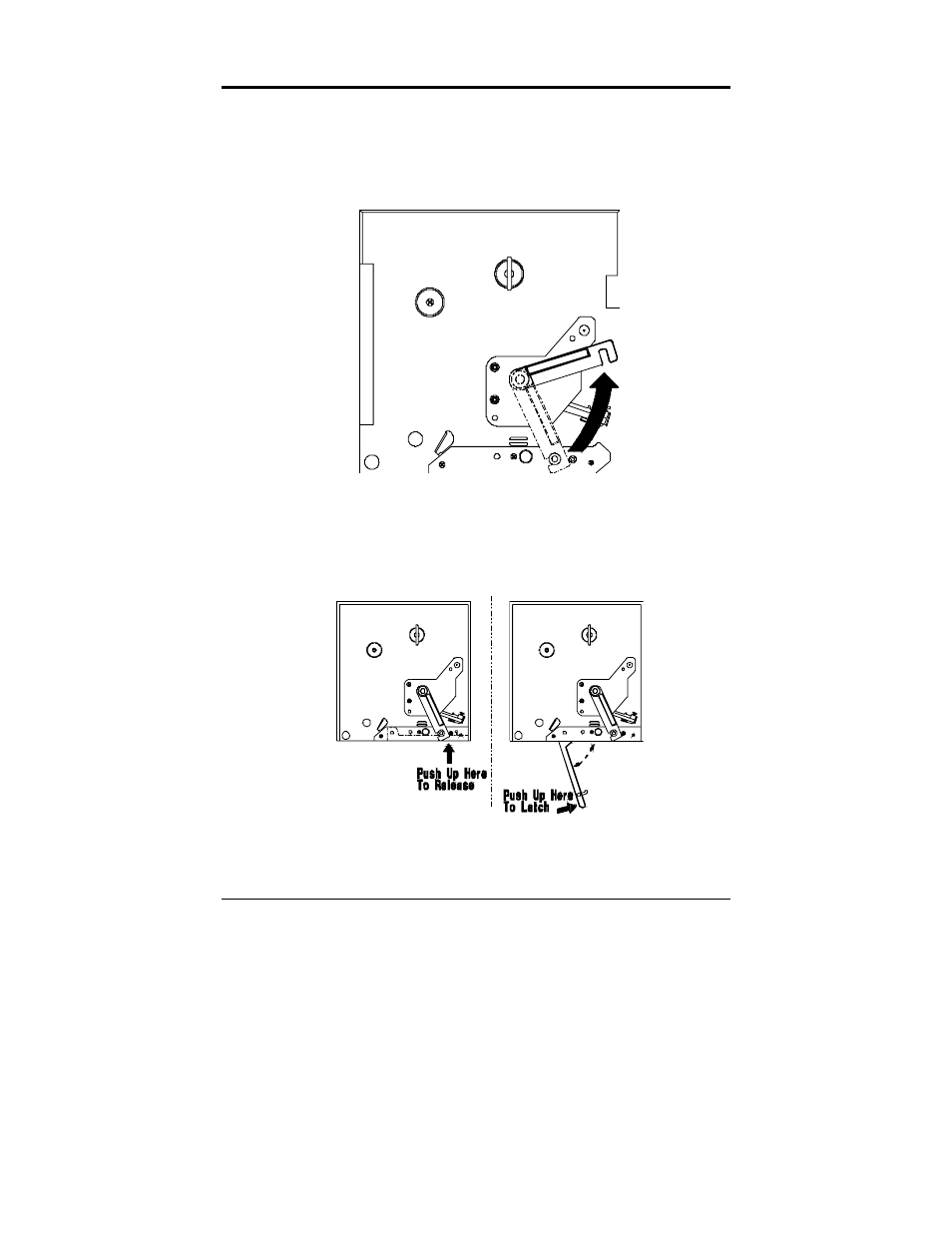

Figure 3-2 Head-Lift Lever
o Push ‘up’ on the hinged Drive Plate at the point shown in
Figure 3-3. This will release the plate, allowing it to swing
down.
Figure 3-3 Opening and Closing the Drive Plate
