PE Series Operator’s Manual 28
Using Your Printer
4.0 Using the Printer’s Front Panel
The printer’s detachable/rotatable front panel contains nine buttons,
three lights and a 2x16 character display with contrast adjustment.
The functions and features are as follows:

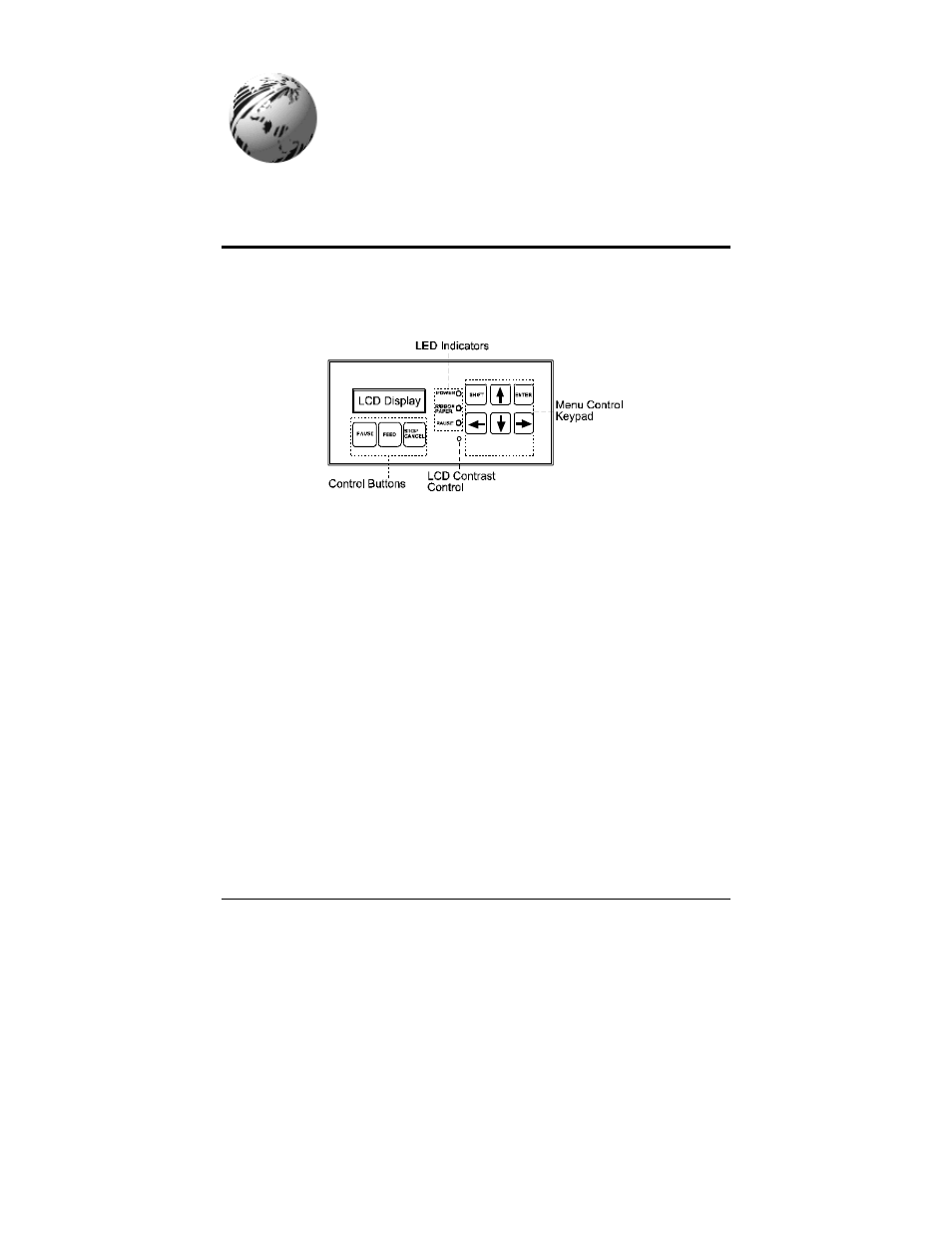

Figure 4-1 Front Panel
Control Buttons
Pause This button temporarily stops the current print
job. Printing will resume when pressed a second time.
Feed Pressing this button will feed one label. When pressed
during a print job, the label will feed upon completion of the
job. Also, pressing Feed will clear an alarm condition.
Cancel Pressing this button one time will clear the current
job, pause the printer, and prepare the next job (if any).
When more than one job has been sent to the printer, only the
current job is canceled, all other jobs are unaffected.
However, repeatedly pressing this button will remove the
remaining jobs from the cue, one by one.
