Page 42
COMMUNICATION DEBUGGING
1. Turn on your computer, and run the GCS ground station software.
2. Turn on the adapter board power supply, the adapter plate light will flash slowly.
3. Select the correct communications port from GCS software. Baud Rate 19200.
4. Turn ON your RC Transmitter.
5. Turn ON the autopilot power.
6. If everything is connected correctly, you will see the received telemetry data through the ground
station software.

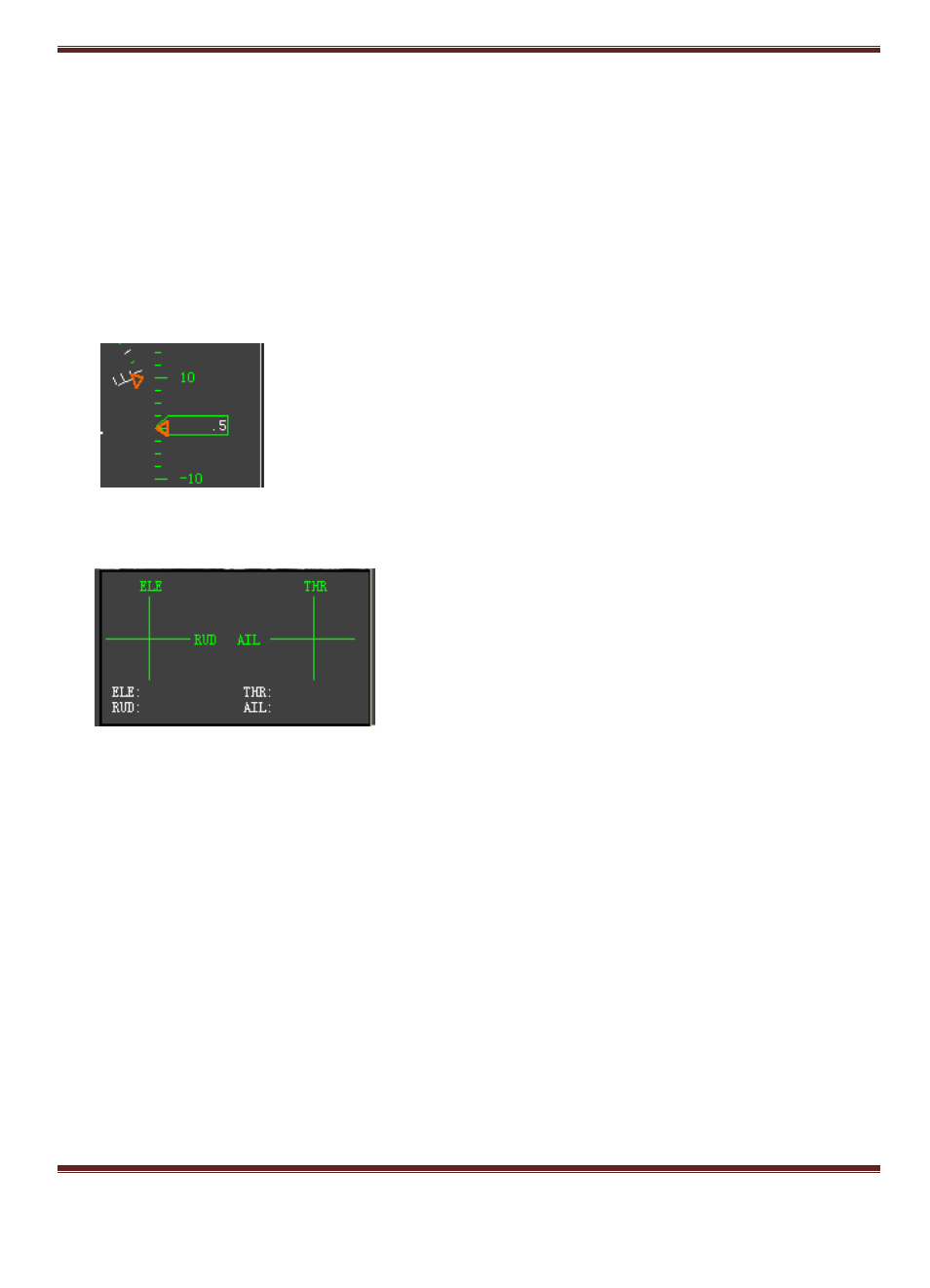

7. When the pressure altitude is 0 meters (Note: Auto-Initialization initial boot height is 0 meters).
8. Move your rudder control on the RC transmitter, you will see the rudder output through the
rudder display table. This means the ground station has connected properly with the autopilot.
9. TheFY602 data radio has red and green status lights.
10. FY-602 Red light – Data Radio is ―transmitting‖.
11. FY-602 Green light – Data Radio is ―receiving‖.
12. If you find that transmission of the data radio causes the rudder to ―twitch‖ from interference,
please move the Data Radio transmitter away from the rudder or other effected servos.
