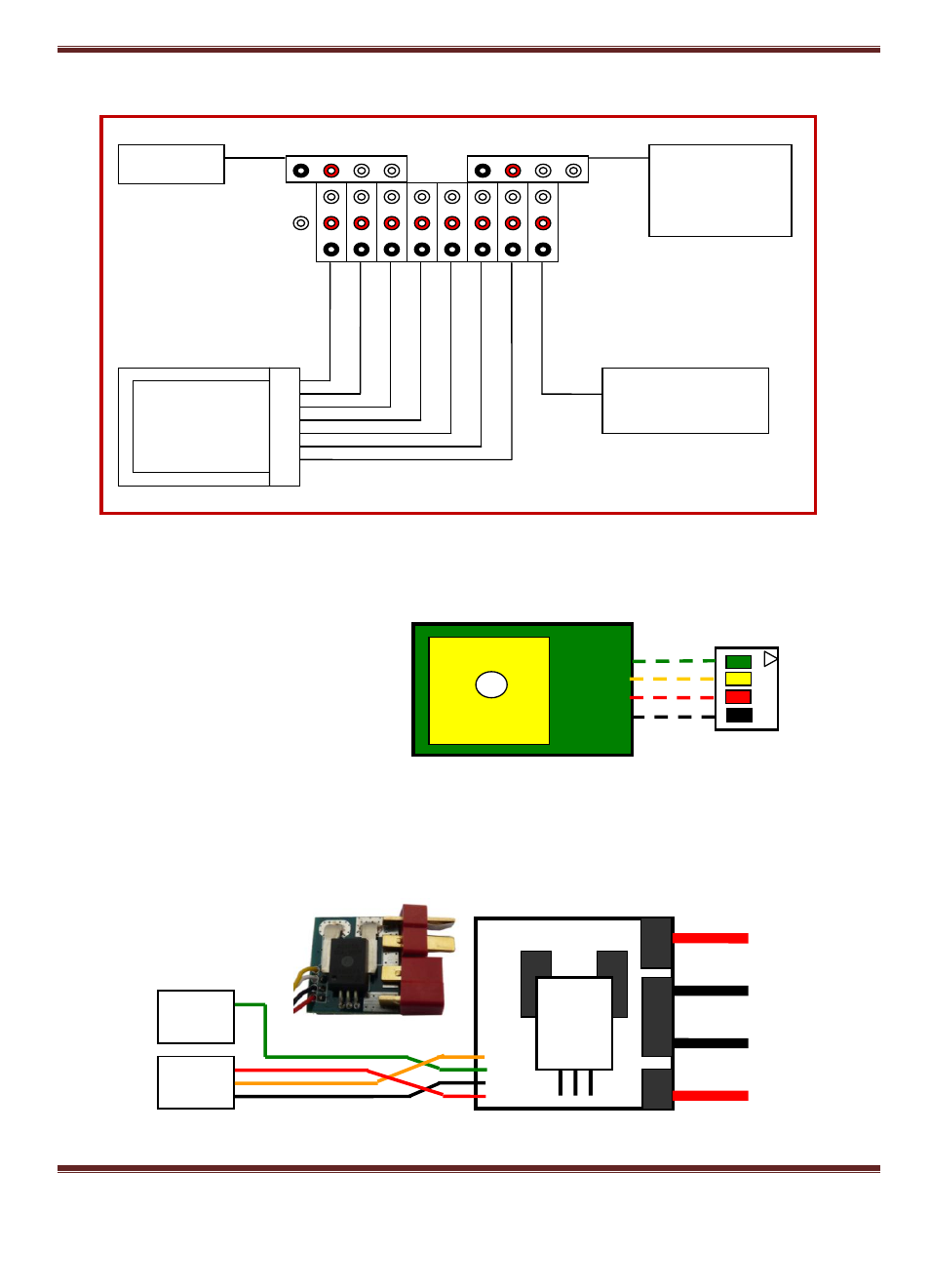

Connection diagram:
The interface and features of the GPS circuit board
TX: For Data transmission to the AHRS&GPS
Module (RX1)
RX:For Receiving data transmitted from
AHRS&GPS module (TX1)
Interface Features: TTL level
Baud rate: 38400
Data bits: 8
Stop bits: 1
Parity: None
GPS Data refresh rate: 10Hz
Current sensor:
Battery positive input
Battery negative input
Output negative to ESC
Output positive to ESC
Yellow
Black
Green
Power Current
signal
Voltage signal
5V Power
GND
Red
Data radio
Serial
port
connection to
PC
RC Receiver
5V Power battery
GND
+
GPS antenna
GND black
RX green
TX yellow
VCC red
