OPTION 2: POWER WARNING
If you choose to use the 5.0 volt power from your ESC BEC, you can plug the throttle control
wire directly into the ―THR‖ port. However please ensure that your ESC BEC can supply a
minimum of 3.0 A current.
However, we highly recommend that you use an external BEC with 3.0 A current output.
The 5.0 volt External BEC power input is connected via I/O1 port.

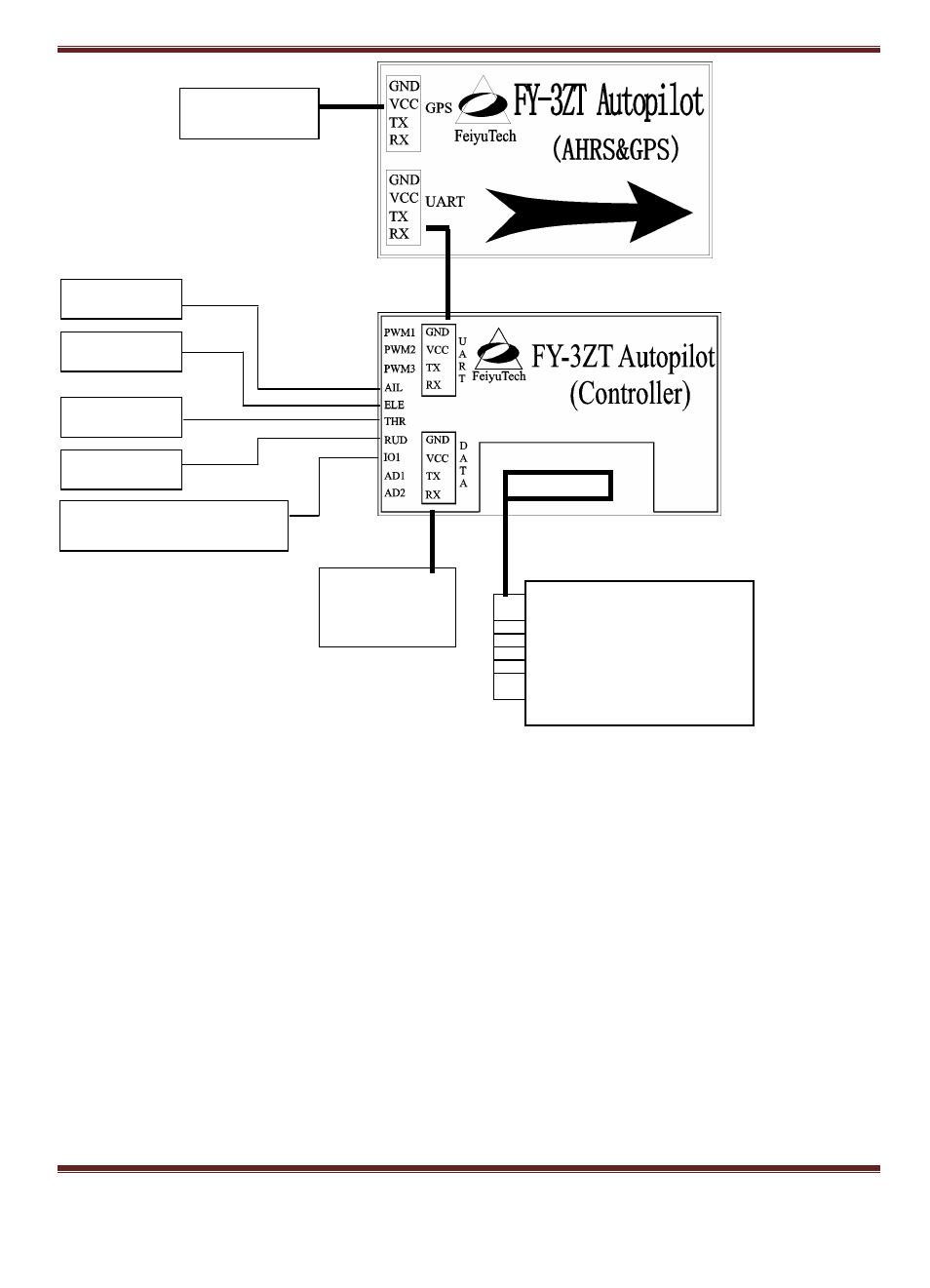

OPTION 3: TWO RECEIVER SYSTEM
Data radio
AIL Servo
RUD Servo
THR Servo
ELE Servo
RC Receiver
AIL
THR
CH5
ELE
CH6
RUD
CH7
6
GPS Module
5.0 volt BEC input (I/O1)
