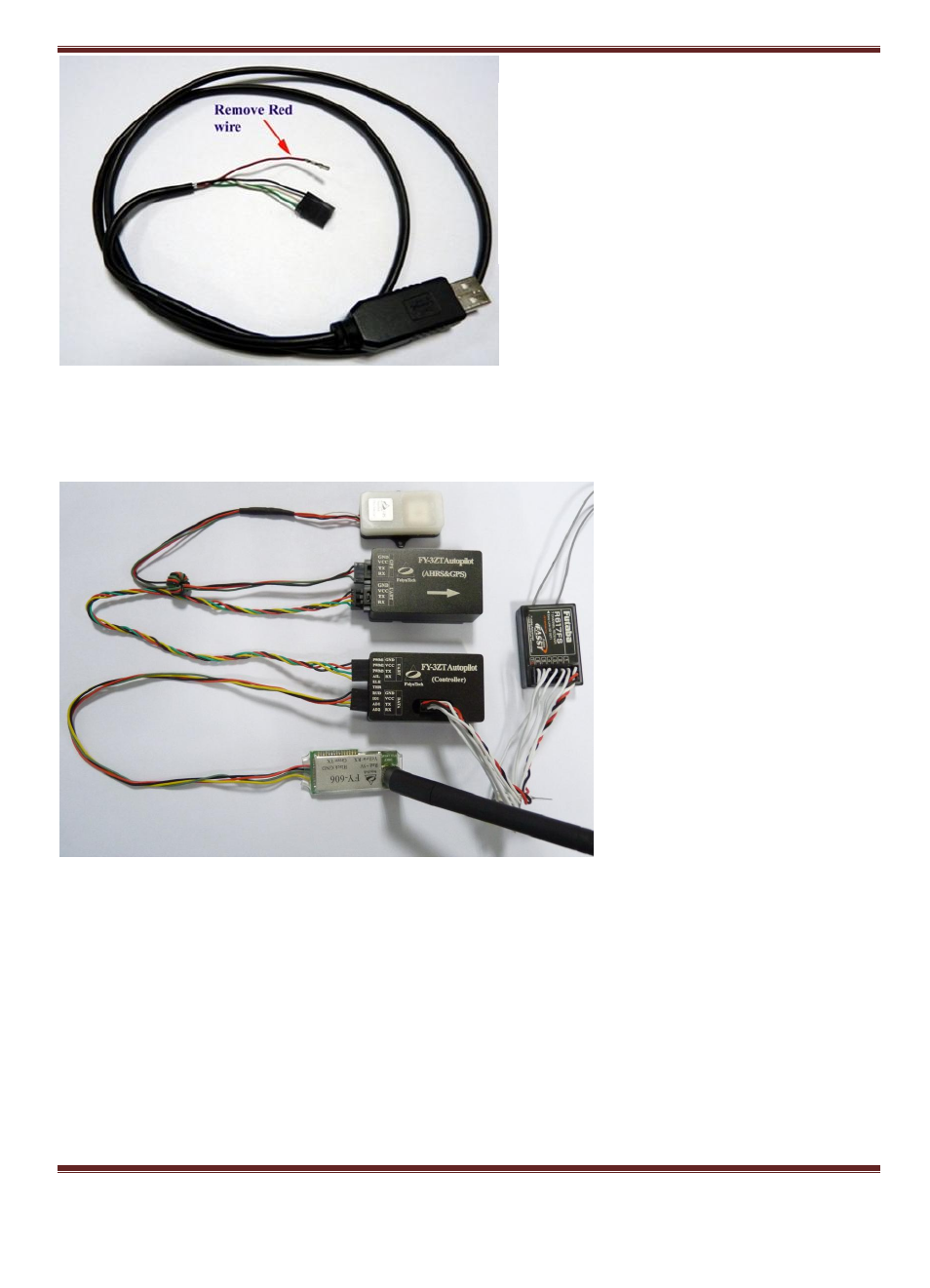

OPTION 2: ON-BOARD AIRCRAFT SYSTEM DIAGRAMME
NOTE: If you wish to use a 5 volt
Receiver battery to power the ground
station system, please disconnect the 5
volt power coming from the USB
Interface cable.
