Fy-606 data radio installation (ground control) – FeiYu Tech FY-3ZT User Manual
Page 27
GuiLin FeiYu Electronic Technology Co., Ltd.
GuiLin FeiYu Electronic Technology Co., Ltd http://www.feiyudz.cn E-mail: [email protected]
Page 26
FY-606 DATA RADIO INSTALLATION (GROUND CONTROL)

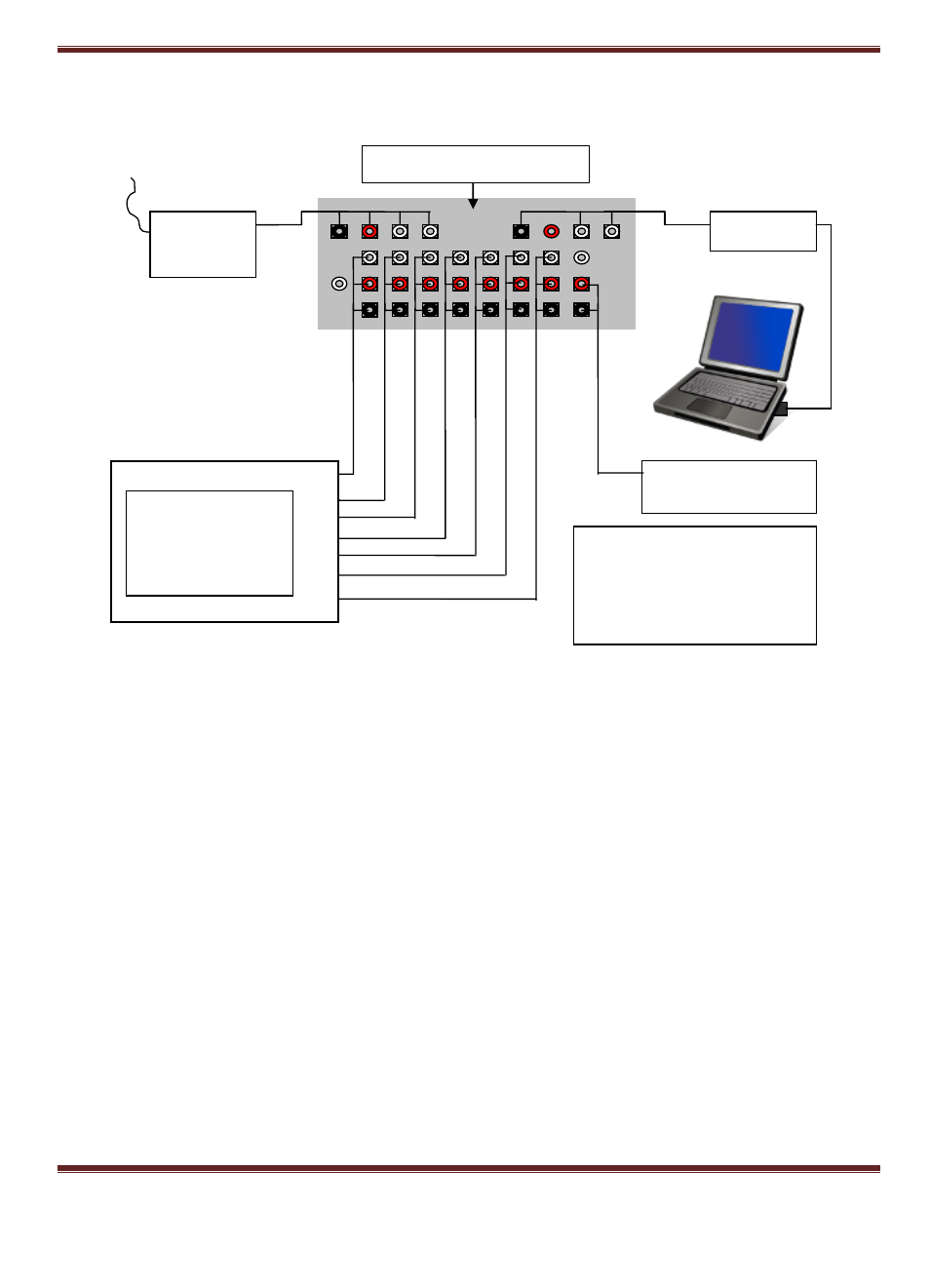

Below is the connection diagram of the Data Radio and GCS:
Note: Signals of RC Receiver Channel 7 will output directly from the PWM 2 Pin of FY3ZT. This
Channel is used to active or de-active the OSD display function.
FY606
data radio
USB -- TTL
Note:
Please
always
disconnect the 5v USB cable
when receiver‘s battery is in
used to power the receiver and
adapter board.
RC reciever
AIL
THR
CH5
ELE
CH6
RUD
CH7
6
5V supply batteries
FY-3ZT Remoter Adapter
