Upgrading the Hard Disk Drive(s) 6 - 5
6
7. Carefully disconnect cable(s) from the hard disk(s) you want to replace .
8. Remove the hard disk screws - , and brackets & .
9. Reverse the process to install any new hard disk.
10. If you are configuring the hard disks in AHCI mode or as a RAID system see
“Setting Up SATA RAID or AHCI Modes” on page 7 - 2 .
9
10
13 14 15

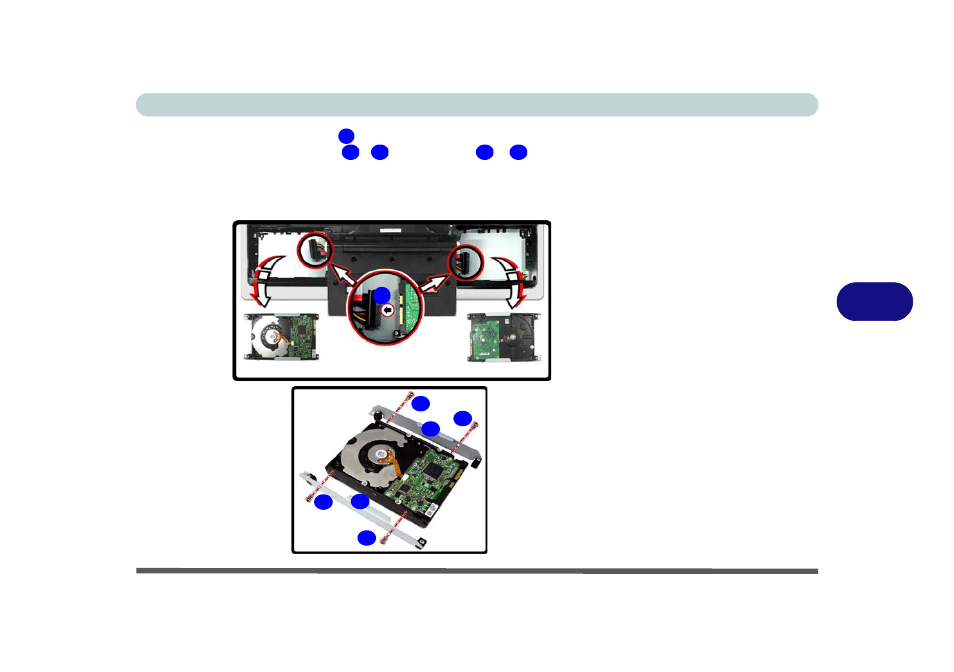

Figure 6 - 3
HDD Cable(s) &
Bracket Removal
