System Map: Front View & Top View (Model B) 1 - 9
Quick Start Guide
1
System Map: Front View & Top View (Model B)

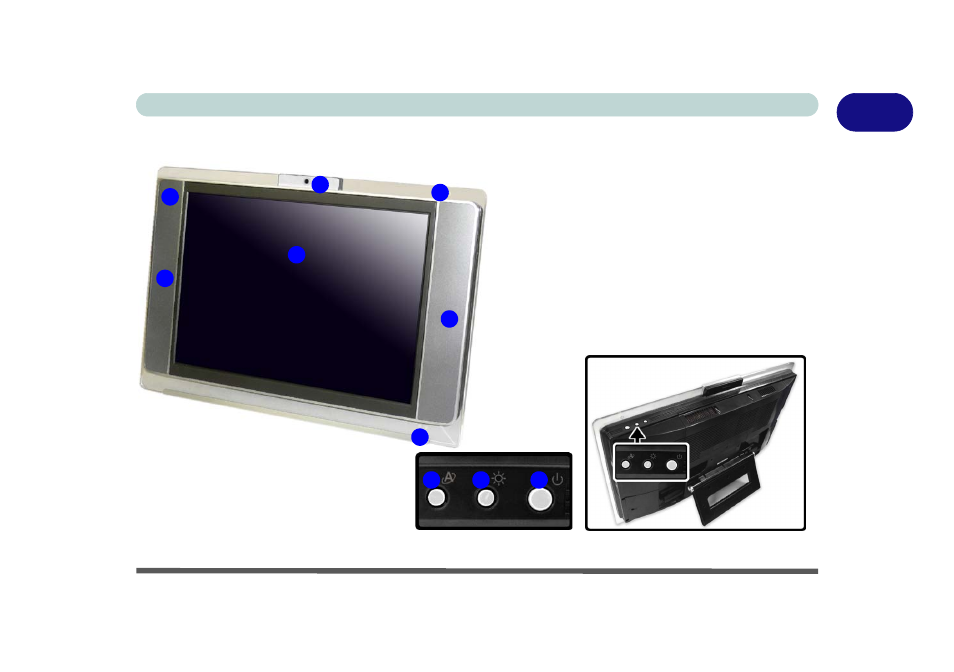

Figure 1 - 3 - Front View (Model B)
4
9
1
6
2
1.
Optional Built-In PC Camera
2.
Power LED
3.
Consumer Infrared Transceiver
(Communicates with Optional TV Remote)
4.
LCD
5.
LED Indicators
6.
Speakers
7.
Power Button
8.
Brightness Hot Key Button*
9.
Application Hot Key Button*
*Requires Hot Key Driver
