1 - 16 Audio/Video Jacks
Quick Start Guide
1
Audio/Video Jacks

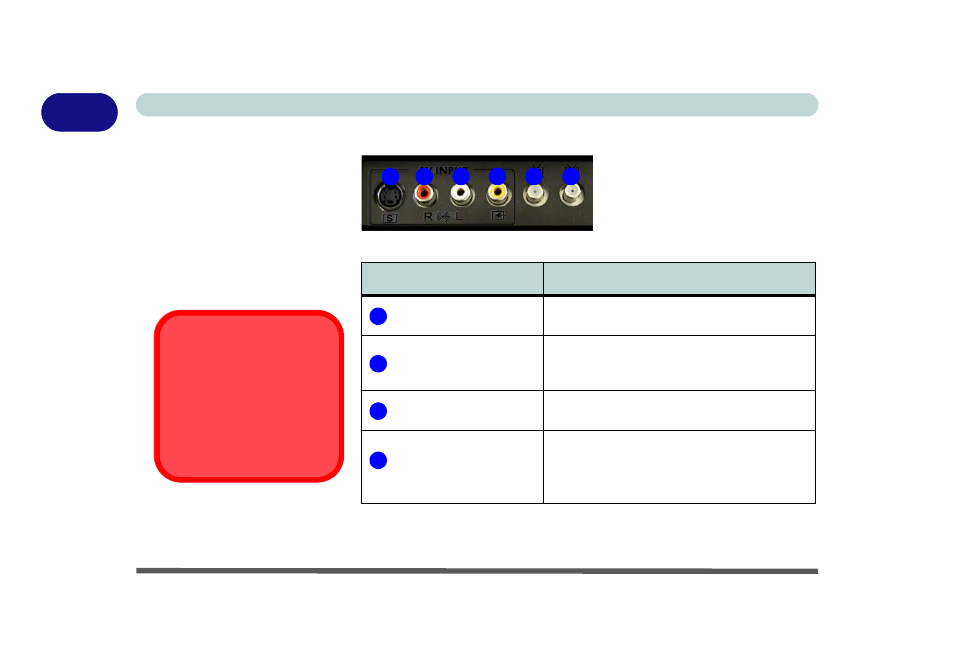

Figure 1 - 8 - Audio/Video Jacks
Table 1 - 4 - Jack Connections
Port/Jack Connection
S-Video-In Jack
Connect an S-Video Cable to this Jack to
Display External Video Sources on the LCD
Right & Left Audio-In Jacks
Connect Analog Audio Cables to Play External
Audio Sources Through the Computer’s
Speakers
Composite Video-In Jack
Connect a Composite Video Cable to this Jack
to Display External Video Sources on the LCD
CATV-In (Coaxial) Jacks
(for TV Tuner Option Only)
Connect a CATV Cable or Digital Aerial to
Display Cable TV Pictures on the LCD
4 2 4 3 1 2
CATV Cable Safety
Make sure that your CATV sys-
tem installer has connected the
coaxial cable shield to the
grounding system of the building,
as close to the point of cable en-
try as practical.
1
2
3
4
