1 - 14 System Map: Left View
Quick Start Guide
1
System Map: Left View
1
2
5
6
7
9
8
10
3
4
ExpressCard Slot
The ExpressCard Slot accepts either Ex-
pressCard/34 or ExpressCard/54 formats.
Mini-IEEE 1394 Port
The Mini-IEEE 1394 port only supports SELF
POWERED IEEE 1394 devices.

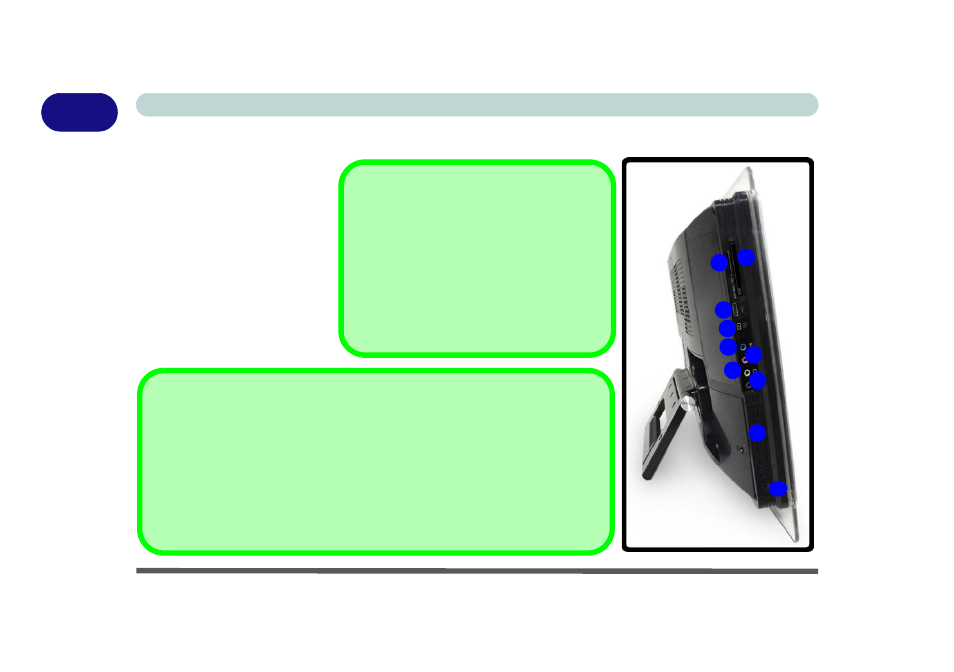

Figure 1 - 6 - Left View
1. ExpressCard Slot 54/34
2. 7-in-1 Card Reader
3. 1 * USB 2.0 Port
4. Mini-IEEE 1394 Port
5. Line-In Jack (Blue)
6. Microphone-In Jack (Pink)
7. Headphone-Out Jack
(Green)
8. S/PDIF-Out Jack (Black)
9. Vent/Fan Intake/Outlet
10. Security Lock Slot
7-in-1 Card Reader
The card reader allows you to use the most
popular digital storage card formats:
MMC (MultiMedia Card) / SD (Secure Digital) / MS (Memory Stick) /
MS Pro (Memory Stick Pro)
MS Duo (requires PC adapter) / Mini SD (requires PC adapter) /
RS MMC (requires PC adapter)
