Interface (Ports & Jacks)
Interface (Ports & Jacks) A - 5
A
Audio/Video Jacks

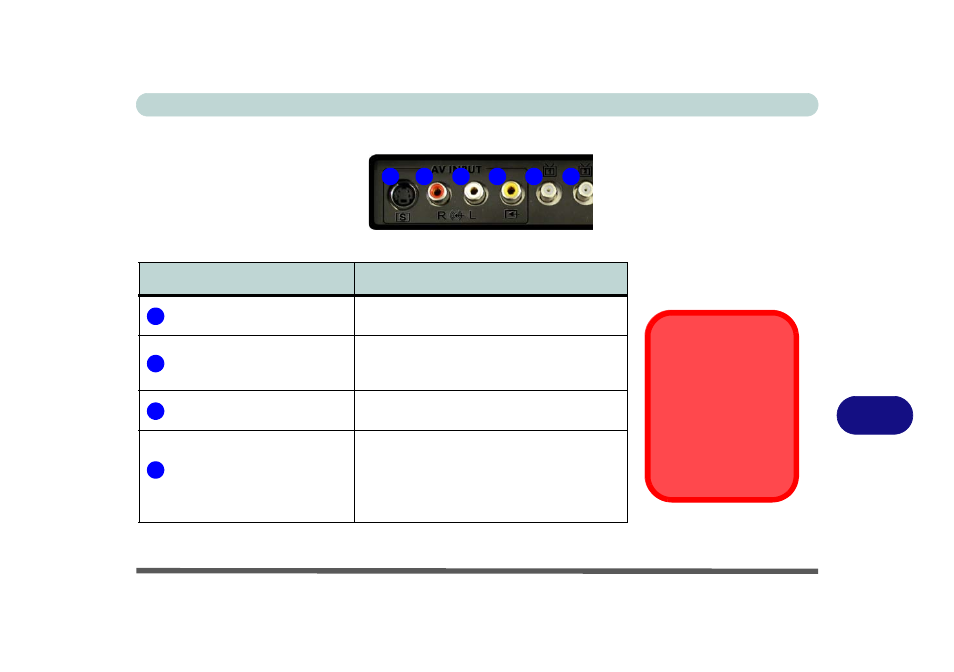

Figure A - 1 - Audio/Video Jacks
Figure A - 2 - Audio/Video Jack Connections
Port/Jack Connection
S-Video-In Jack
Connect an S-Video Cable to this Jack to
Display External Video Sources on the LCD
Right & Left Audio-In Jacks
Connect Analog Audio Cables to Play External
Audio Sources Through the Computer’s
Speakers
Composite Video-In Jack
Connect a Composite Video Cable to this Jack
to Display External Video Sources on the LCD
CATV-In (Coaxial) Jacks
(for TV Tuner Option Only)
Connect a CATV Cable or Digital Aerial to
Display Cable TV Pictures on the LCD
(Note: You can use one of the CATV-In jacks to
connect a CATV cable, and the other to connect a
Digital Aerial.)
4 2 4 3 1 2
1
CATV Cable Safety
Make sure that your
CATV system installer
has connected the coaxi-
al cable shield to the
grounding system of the
building, as close to the
point of cable entry as
practical.
2
3
4
