Upgrading The Computer
Upgrading the Hard Disk Drive(s) 6 - 5
6
4. Push the parallel hard disk assembly in the direction of the arrow (serial
HDD’s push in the opposite direction - see sidebar) and lift the assembly
up out off the computer.
5. Remove screws - in order to separate the bracket from the hard disk.
6. Reverse the process to install a new hard disk(s).
5
6
Hard Disk
Connectors
There are two hard
disk connectors on this
computer. The pic-
tured hard disk assem-
bly is connected to the
parallel connector; the
serial connector is on
the opposite side.

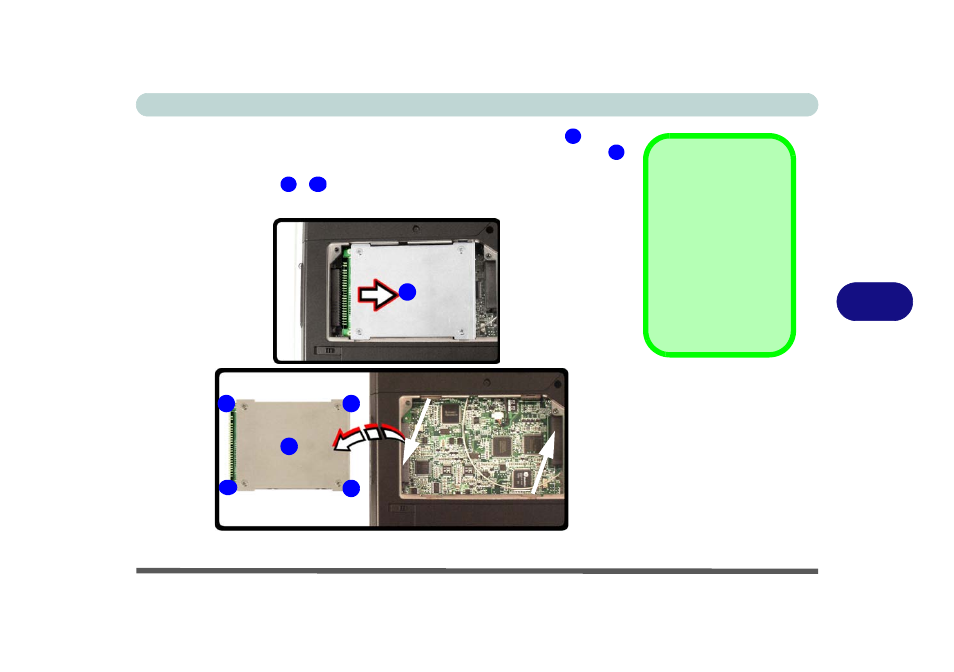

Figure 6 - 3
Hard Disk Removal
7 10
5
6
7
9
8
10
Parallel HDD
Serial HDD
Connector
Connector
Parallel HDD
