The video channel selection area provides the IP addresses and location information of the connected
video channels for the user’s reference. You can select a video channel in this area and create a
schedule for it.
The Primary schedule consists of the day time-line, week time-line, begin time selector, end time selector,
and event mode settings.
The Secondary schedule consists of event mode settings.
The operation buttons allow the user to manipulate the edited schedule of the selected video channel.
The scheduler can be closed from here.
The Functionalities of Configuration Components
The four main parts of the scheduler have been briefly described above. The four parts will be described in detail in
the following section.
Video Channel Selection Area:
Primary Schedule:
Secondary Schedule:
Operation Buttons:
In this area you will select the video channel that you want to set a schedule for. Each video channel will display a
name, an IP address, and the location. Please note that when you switch between video channels in this area, the
changes in the schedule of the previous video channel will be saved automatically.

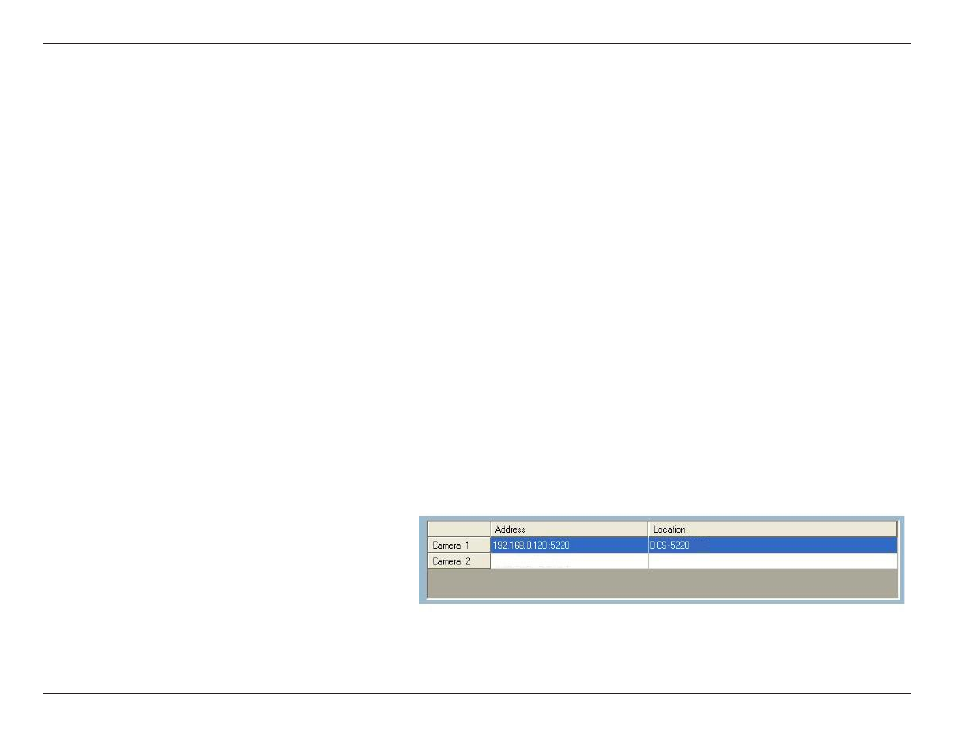

Video Channel Selection Area
