5 D-Link DCS-50 User Manual
Section - Configuration
For detailed information about each setting, please refer to
Configuration > SETUP > Mail & FTP in the section titled
“Using the DCS-5220 With an Internet Browser” (page 26).
Click the “save settings” button when finished.

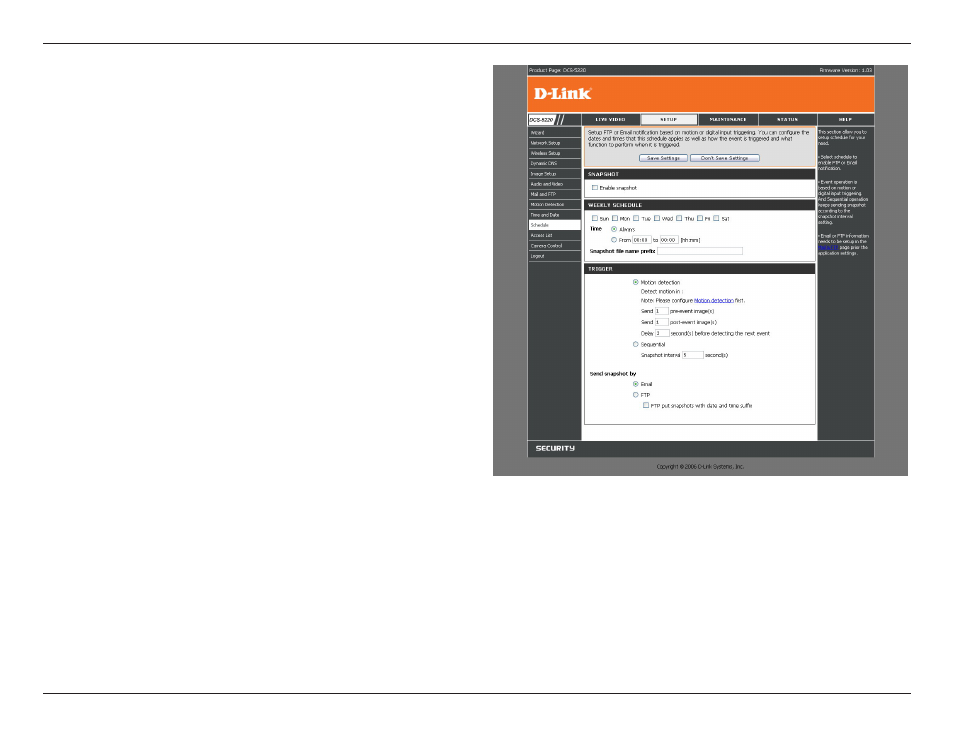

Click the Schedule button under the SETUP tab and select
snapshot to set the application settings for the DCS-5220.
In this window, follow the steps below to set the Schedule
settings for snapshots to be recorded to an FTP site:
1 Check the Enable snapshot box.
2 Select Weekly schedule and setup Time.
3 Select Motion Detection and check the motion
window name (in this case: Moto).
4 Set the delay to “take snapshots after event” to capture
the direction of the moving object.
5. Click Send snapshots by FTP and check “FTP put
snapshots with date and time suffix”.
6. Click the “save settings” button to save the settings.
Click the save settings button when finished. You are now able to record snapshots to your FTP server when motion
detection is triggered.
