Section - Configuration
“Home” aims the camera to the center
and the other buttons aim the camera
accordingly.
“-” controls the zoom out function, “Zoom”
automatically returns the lens to normal
view, “+” controls the zoom in function.
Select the speed at which the camera will
pan for a full cycle from the drop-down list.
Select a value between -5 and +5, -5 being
the slowest setting.
Select the speed at which the camera will
tilt for a full cycle from the pull down menu.
Select a value between -5 and +5, -5 being
the slowest setting.
Select the speed at which the camera
will pan during auto patrol. Select a value
between 1 and 5, 1 being the slowest setting.
Enter a name for the position at which you would like to preset the DCS-5220. Click Add to add the new
preset position to the Preset Locations list.
Using the drop-down list, you can delete a preset position by selecting it and clicking Delete.
Use the Save as home button to set the current position as the home position. The Home position is the
first position the camera goes to after the camera boots. You can also recall the default home position,
use the Default home button.
To use the Auto Patrol feature, select the desired preset positions from the Preset Locations list and add
them to the Selected Locations list by clicking Select. You can then select the order in which the camera
will patrol through the preset locations by selecting a location and clicking UP or DN. Click Remove to
remove a location from the list.

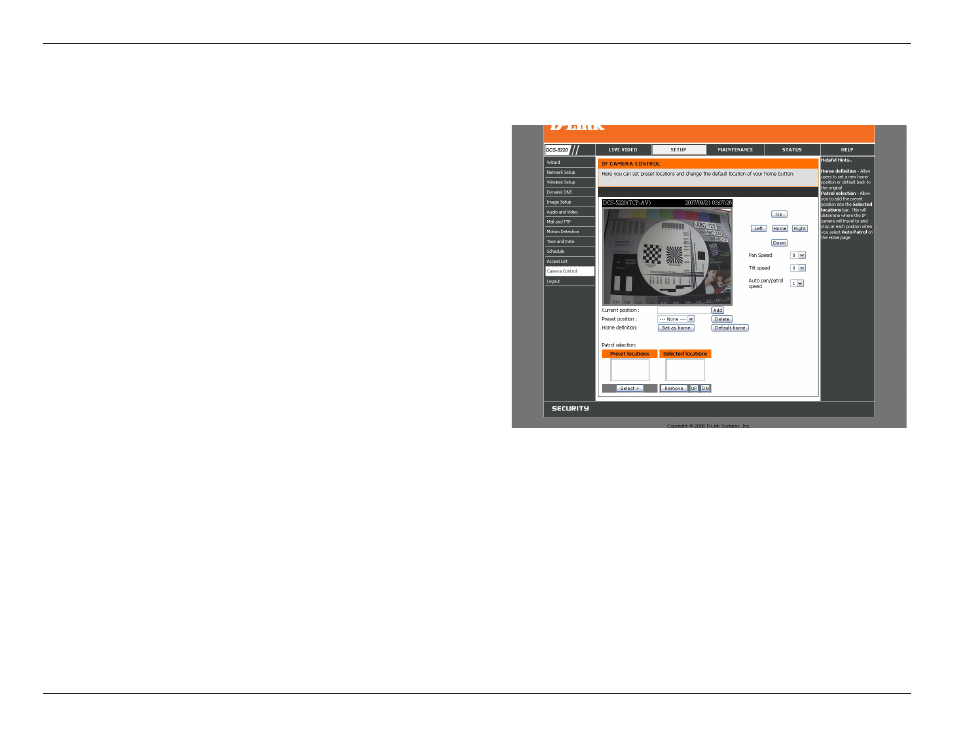

Click the Camera Control button from the left side of the Setup screen to access settings that affect how the DCS-
5220 Internet Camera can pan and move to preset locations.
Camera Control
Left, Up, Right, Down, & Home:
Zoom:
Pan Speed:
Tilt Speed:
Auto Pan/Patrol Speed:
Current Position:
Preset Position:
Home definition:
Patrol Selection:
