Section - Configuration
Select the option for color or monochrome
video display.
This option allows you to choose the
frequency of the power line for different
regions (Power Line Frequency in US:
60Hz).
Vertically rotate the video.
Horizontally rotate the video. Check
both flip and mirror if the DCS-5220 is
installed upside down.
White Balance is related to the color
temperature. Color temperature is a way of
measuring the quality of a light source. It is
based on the ratio of the amount of blue light
to the amount of red light, while the green
light is ignored. The unit for measuring this
ratio is in degrees Kelvin (K). Light with a higher color temperature (i.e. larger Kelvin value) has “more” blue
light than a light with a lower color temperature. The default setting for white balance is “Auto”.
Image Brightness is adjustable, you can set from among eleven levels ranged from -5 to +5. The default
setting is zero.

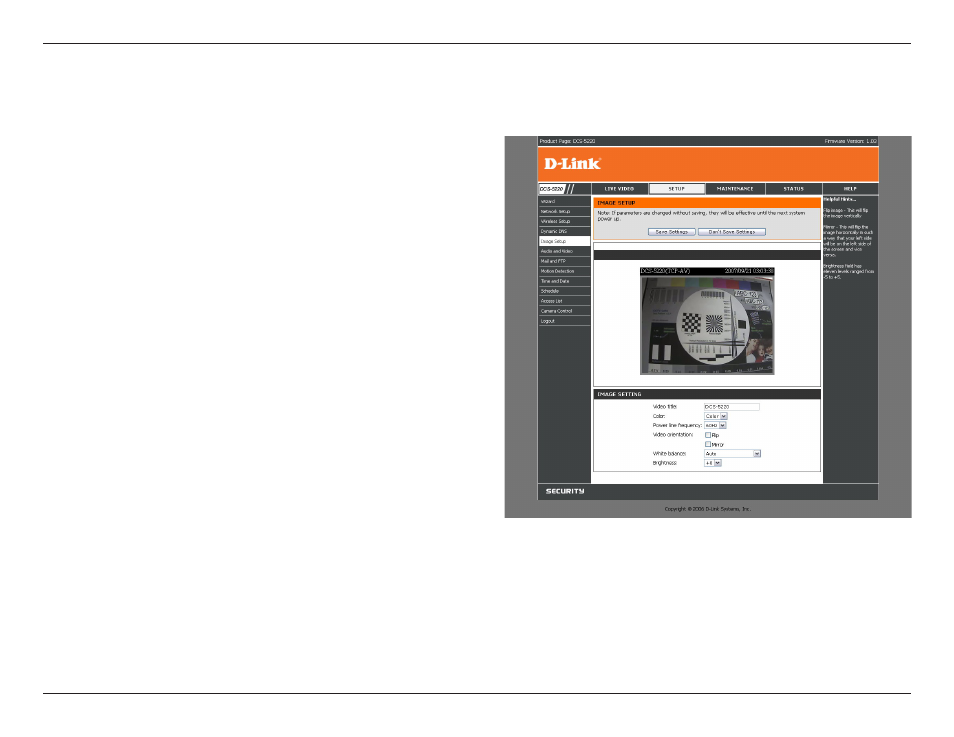

Image Setup
Click the Image Setup button on the left side of the Setup screen to access additional settings that affect how the video
image appears. From this screen you can fine tune the video image.
Color:
Power line frequency:
Video orientation:
Flip:
Mirror:
White Balance:
Brightness:
