MPC1000 v2 Operator’s Manual rev 1.0
5
Connecting MPC1000 to External Audio/MIDI device

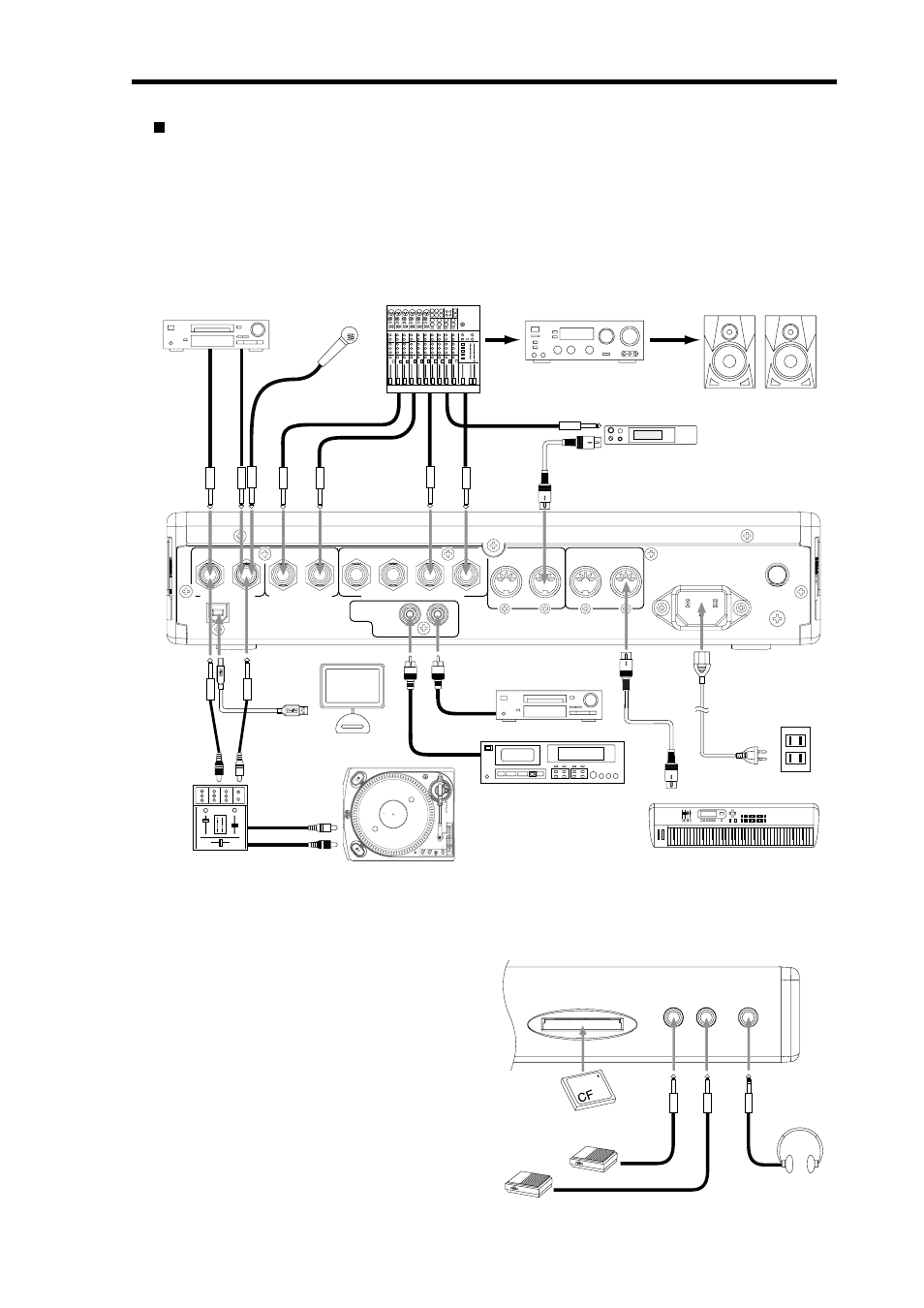

The diagram below demonstrates how you can connect the MPC1000 to an external Audio/MIDI device.
Please note that this is one example, so, when you actually connect your devices, refer to the device’s operator's manual.
Note: When you connect devices, make sure the power is turned off.
PC or MAC
MIDI Keyboard
DIGITAL
OUT IN
USB
RECORD IN
RIGHT LEFT RIGHT LEFT 4 3 2 1
STEREO OUT ASSIGNABLE MIX OUT
MIDI OUT
A B
MIDI IN
1 2
LINE OUT
CD Player
DIGITAL
OUT
CD Player
Microphone
INPUT
Mixer
DJ Mixer
MASTER
OUT L/R
Amplifier
Monitor Speaker
Sound Module
MIDI IN
AUDIO OUT
MIDI OUT MD Recorder
USB
DIGITAL
IN
Turn Table
PHONO
Headphone
PHONES
FOOTSWITCH
1 2
Footswitch
Compact Flash
