MAXIMUM HIRE
SIZE 2 AW6
230 VOLT OPERATION AS SHOWN. FOR 208
VOLT OPERATION REVERSE RED AND ORN
LEADS ON TRANSFORICR.
Blower Relay
Contactor
Capacitor
Crankcase Heater
Compressor Motor
Combustion Relay
Equipment
Fuse Link
Flame Sensor
Fuse
Ground
Gas Valve Relay
Hall Effect Sensor
High-Voltage Transformer
Ignitor
Induced-Draft Motor
Indoor-Fan Motor
Integrated Gas Control
Internal Protector
Limit Switch
Main Gas Valve
NOTES:
1 If any of the original wire furnished must be replaced, it must be replaced
with type 90 C wire or its equivalent.
2 Thermostat: HH07AT174, HH01AD040, HH01AD046 Subbase: HH93AZ040,
HH93AZ176
3 Use copper conductors only
Outdoor-Fan Motor
Power
Quadruple Terminal
Rollout Switch
Transformer
Field Splice
Terminal (Marked)
Terminal (Unmarked)
Splice
Splice (Marked)
Factory Wiring
Field Control Wiring
Field Power Wiring
Accessory or Optional Wiring
To Indicate Common Potential
Only, Not to Represent Wiring
L

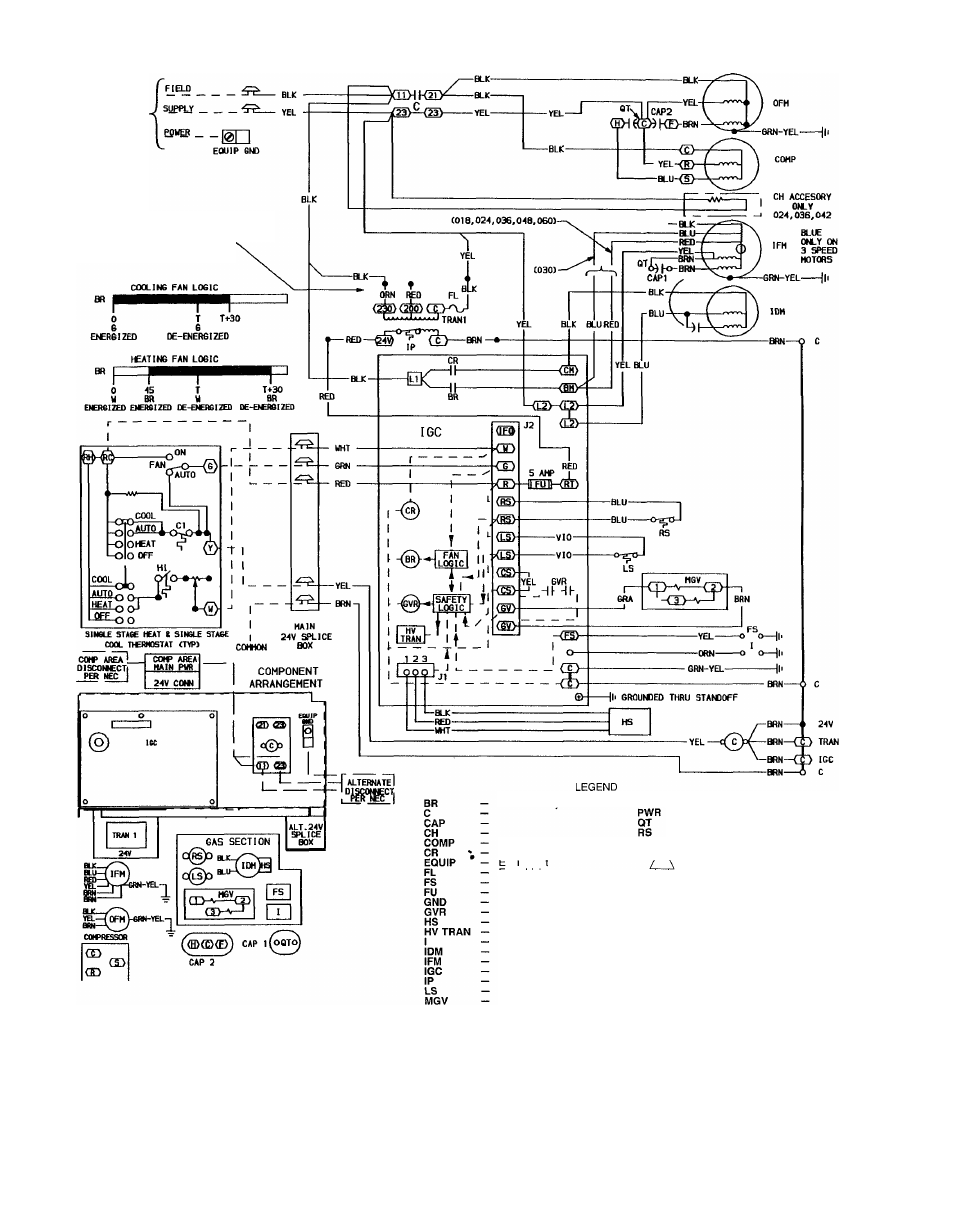

Fig. 25 — 208/230-1-60 Wiring Diagram, Units 48SS018-060
