Fig. 10 — roof curb dimensions – Carrier 48SX024-048 User Manual
Page 11
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
PART NUMBER
“A”
“B”
PITCH
FLAT
50SS900015
8" [203]
—
-
50SS900016
11" [279]
—
—
50SS900017
14" [356]
—
—
PITCHED
50SS900019
8" [203]
10%" [276]
1:12
50SS900020
8" [203]
13«/ie" [344]
2:12
50SS900021
8" [203]
16%" [416]
3:12
50SS900022
8" [203]
19V4" [489]
4.12
50SS900023
8" [203]
22%" [568]
5:12
50SS900024
8" [203]
25%" [651]
6:12
NOTES:
Roof curb must be set up for unit being instaiied
Seai strip must be applied as required for unit being instaiied.
Dimensions in [ ] are in miilimeters
Roof curb is made of 16 gage steel
Attach ductwork to curb (flanges of duct rest on curb).
Service ciearance 4 ft on each side
1
2
3
4
5
6
.
7
Direction of airfiow.
8. Insulated panels: 1-in. thick fiberglass 1 lb density.

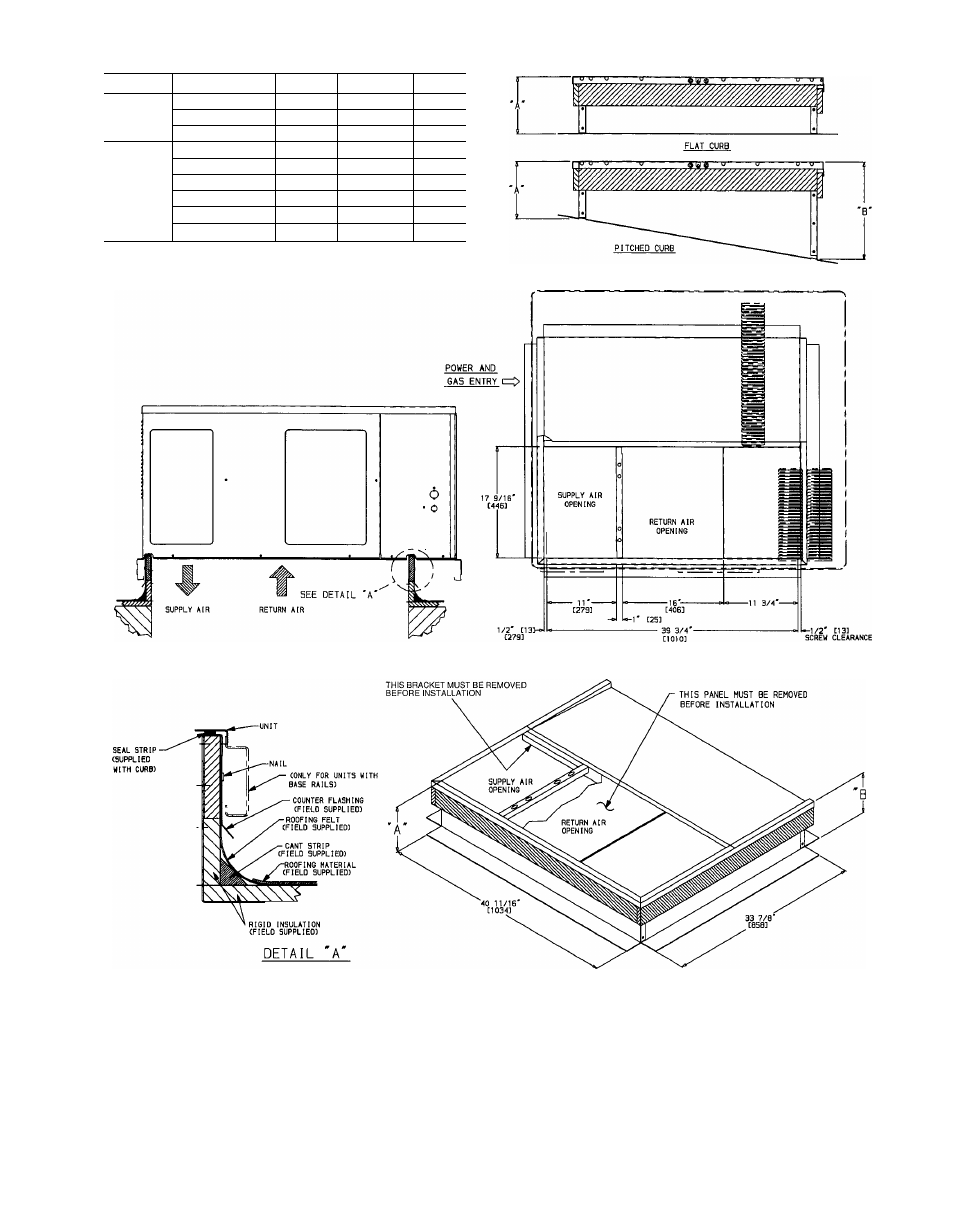

Fig. 10 — Roof Curb Dimensions
11
