3-40 Chapter 3 - Real-Time Guidance
About the Real-Time Guidance Process
SmartPad II
Software Version 4.03
The bottom of the view page contains the information window. Various information about the current real-time pro-
cess will be displayed in this window. There is a specific Information button located in the button bar, when this but-
ton is either highlighted or pressed, information such as total area applied will be displayed. If you have a field
boundary displayed in the map window, the area of the field boundary, in Acres or Hectares, will also be displayed in
the information window.
Located at the bottom right corner of the view page is the key code box. This box displays which SmartPad II keys are
active based on the current view page and button bar state.

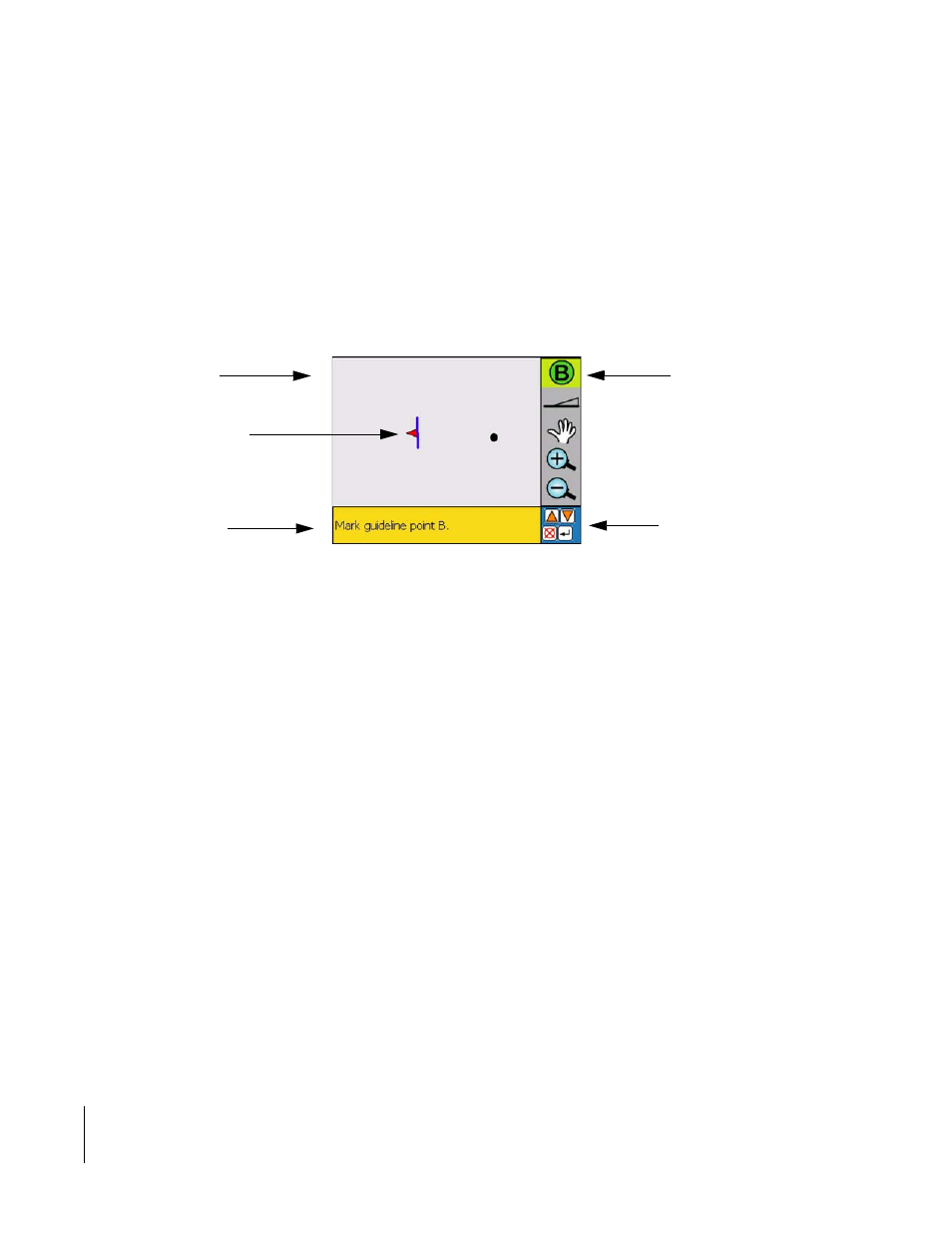

Figure 3-51: The SmartPad II View Page
Map Window Button Bar
Info Window
Key Code Box
Vehicle with Point A
marked
