Chapter 4 - Waypoint Navigation
Nav 2 Point Real-Time Scenarios

SmartPad II

Software Version 4.03

Adding the Start Navigation Button

This example also defines a special case. When the operator initially starts the Nav 2 Point application there are no
existing points; therefore the Start Navigation button is not placed in the button bar, Figure 4 -36. Once the operator
added the first sample point, the Start Navigation button is placed in the button bar (Figure 4 -37#, and will remain in
the button bar unless the operator deleted all sample points in the Point/Grid file.

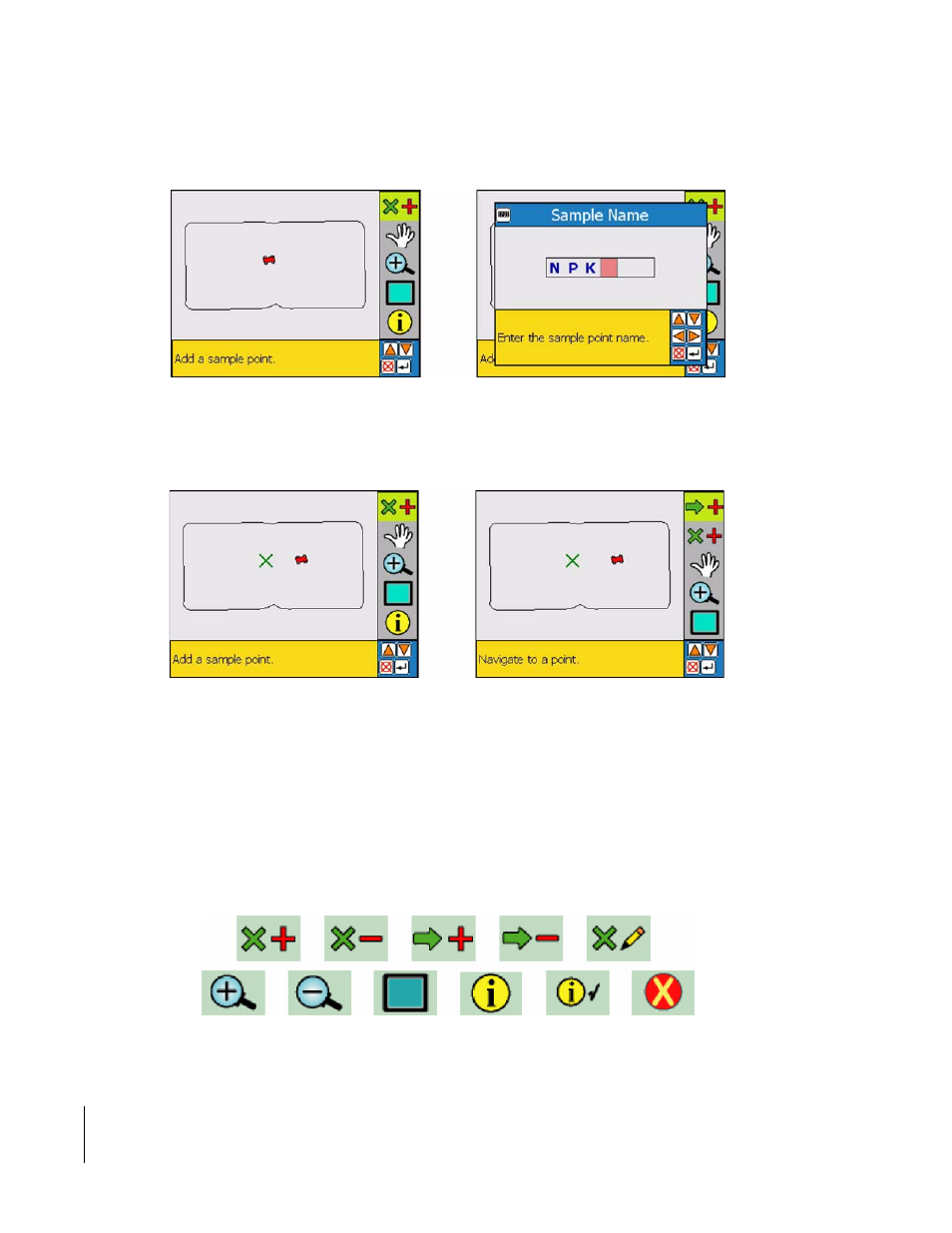

Figure 4-36: Marking the Sample Point and Entering A Sample Name

Figure 4-37: Adding Sample Point Completed.

Figure 4-38: Icons Used in this Example
