3-74 Chapter 3 - Real-Time Guidance
Lightbar Index
SmartPad II
Software Version 4.03
Lightbar Index
The SmartPad II Lightbars are capable of displaying a considerable amount of information to the user. This informa-
tion can be represented as text in the display window, illuminated lights on the stop light or cross track LEDs or a
combination of text and lights. Information displayed on the lightbar depends on both user defined settings and sys-
tem warnings not controlled by the user. Table 3-17, “SmartPad II Swath XL / GuideLine Lightbar Index,” on page 3-
75 describes each possible lightbar state and possible information that could be displayed.
NOTE: The CenterLine Lightbar will NOT have the Warning light on the Left and Right side of the lightbar.

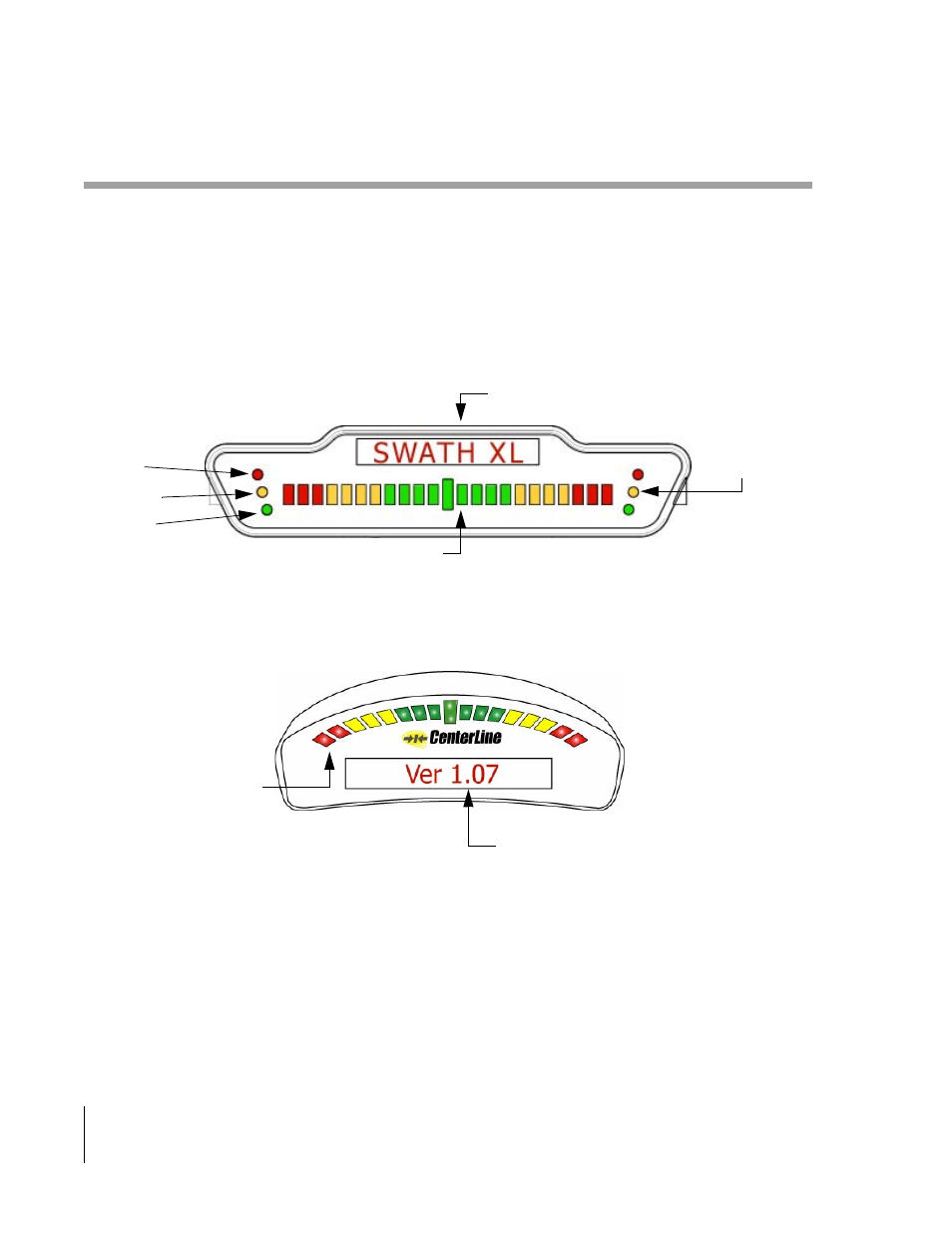

Figure 3-104: The SmartPad II Lightbar
Figure 3-105:
Eight Character Text Display Window
Cross Track Error LEDs
Warning Stop
Lights
Red
Yellow
Green
Cross Track Error LEDs
Eight Character Text Display Window
