Creating a Field Boundary
SmartPad II
Software Version 4.03
Typically you will also want to apply product and establish the initial guideline while driving the field perimeter. Fig-
ure 3-93 shows the vehicle creating the field boundary while establishing the initial guideline and applying product.
Notice that the Map Boundary button has changed states. If the is pressed now, SmartPad II will stop mapping the
field boundary.
Figure 3-94 shows the vehicle just about to complete driving the field perimeter. The initial guideline has been estab-
lished and a product application map is also being created while mapping the field boundary. When the vehicle
approaches the starting point (with in approximately 15 m) of the field boundary the boundary will automatically
close and the Map Boundary button will change back to Off.

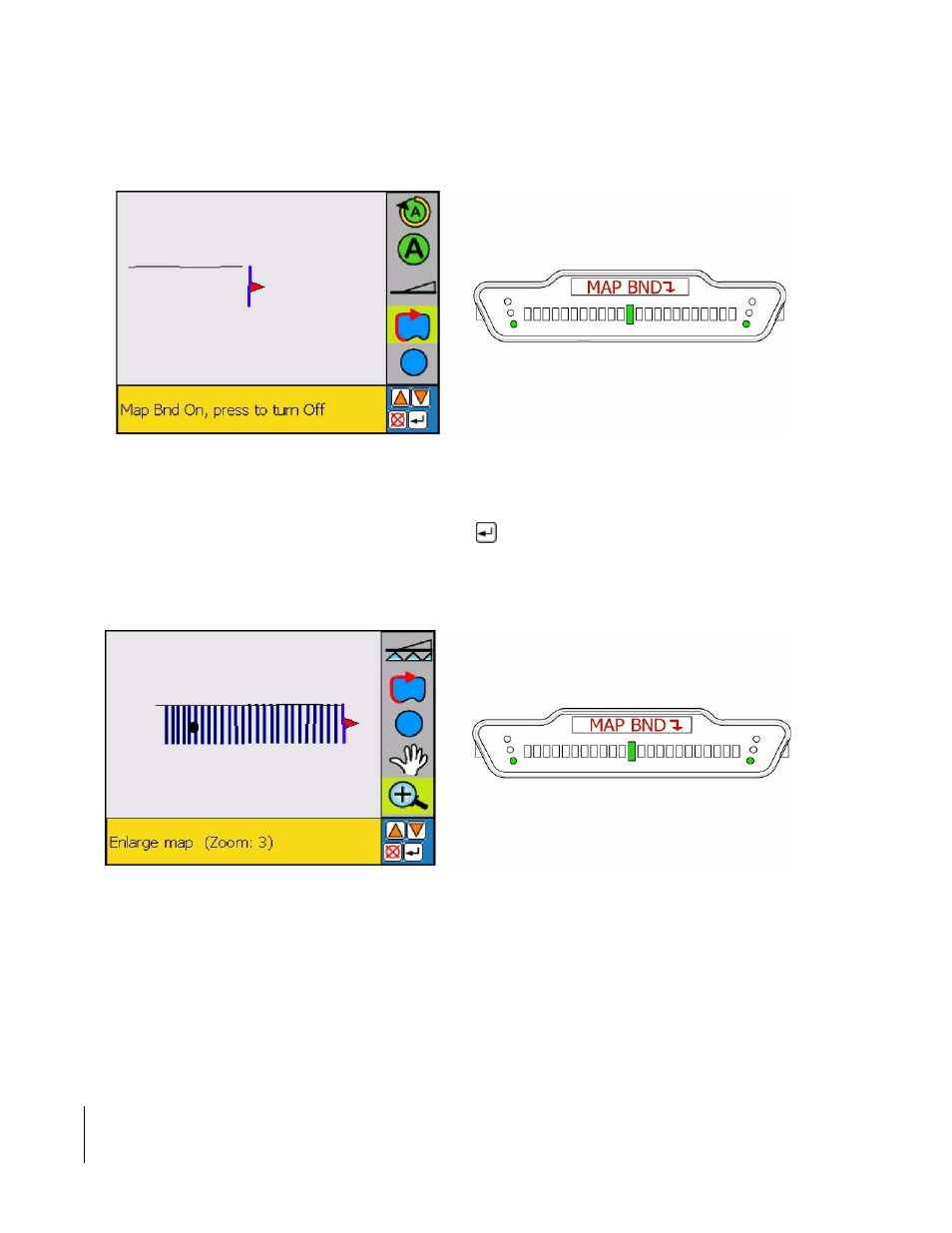

Figure 3-92: Creating a Field Boundary
Figure 3-93: Mapping Field Boundary, Applying Product and Establishing Guideline
