Fieldware for Smartpad II
Software Version 4.03
Chapter 5 - Field Mapping 5-15
About Mapper Real-Time Mapping
Real-Time View Options

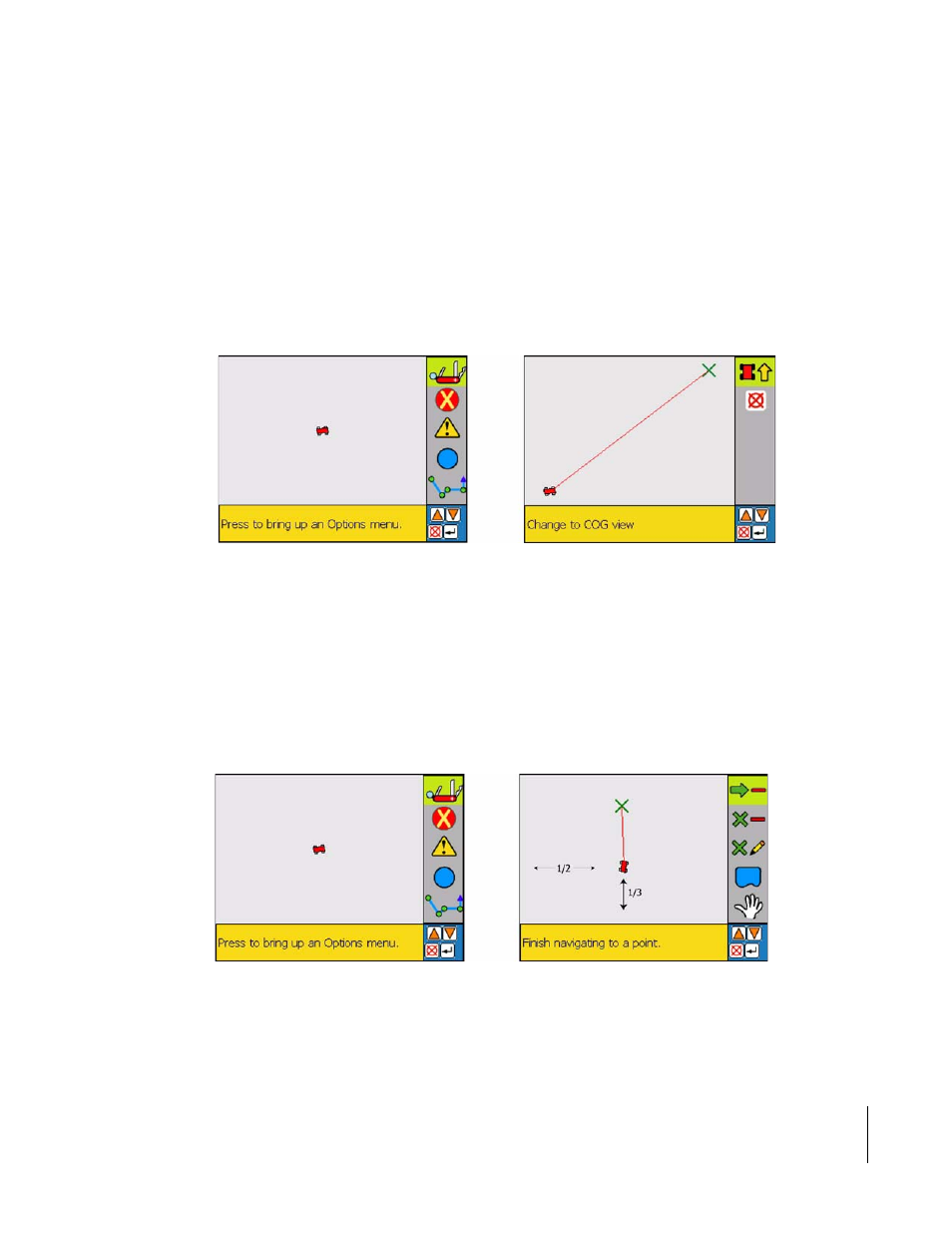

There are two real-time view options, North Up and Course on Ground (COG). SmartPad II Versions prior to 4.02
employ the North Up view only. These two view page options are selectable in real-time page, using the real-time
option menu button (swiss army knife) located in the button bar in the real-time view page. See the left image in Fig-
ure 5-15
North Up View
In the North Up view option, North is always towards the top of the display,
COG View
In the COG view, the vehicle position (anchor point) is 1/3 up and centered in the width of the view portion of the
real-time page and the ground (map) moves beneath the vehicle. The direction of the vehicle is always to the top of
the view. It shows the vehicle navigating to a Sample Point. In this figure the operator is headed directly towards the
point.
Figure 5-15: North Up View
Figure 5-16: COG View
