SmartPad II
Software Version 4.03
Chapter 3 - Real-Time Guidance 3-47
The Parallel Guidance Mode
Figure 3-61 shows the guideline point A in the view page. Note the A button in the button bar automatically changes
to the guideline point B button and the lightbar displays the MARK B message.
Mark Point B
The next step is to establish guideline point B. To establish guideline point B highlight the B button in the button bar
and press . The B point will be displayed in the view page. This establishes the initial swath baseline. Figure 3-62
shows the initial baseline with the A and B points. Once the baseline is established the lightbar will begin displaying
the user defined messages that were selected in the setup process. In Figure 3-62, the top lightbar displays the Swath
message "MARK B" and the lower lightbar displays the X-Track message in the left display A-B is highlighted, this
button allows the operator to mark a new A-B line. A warning will appear before the new line is created

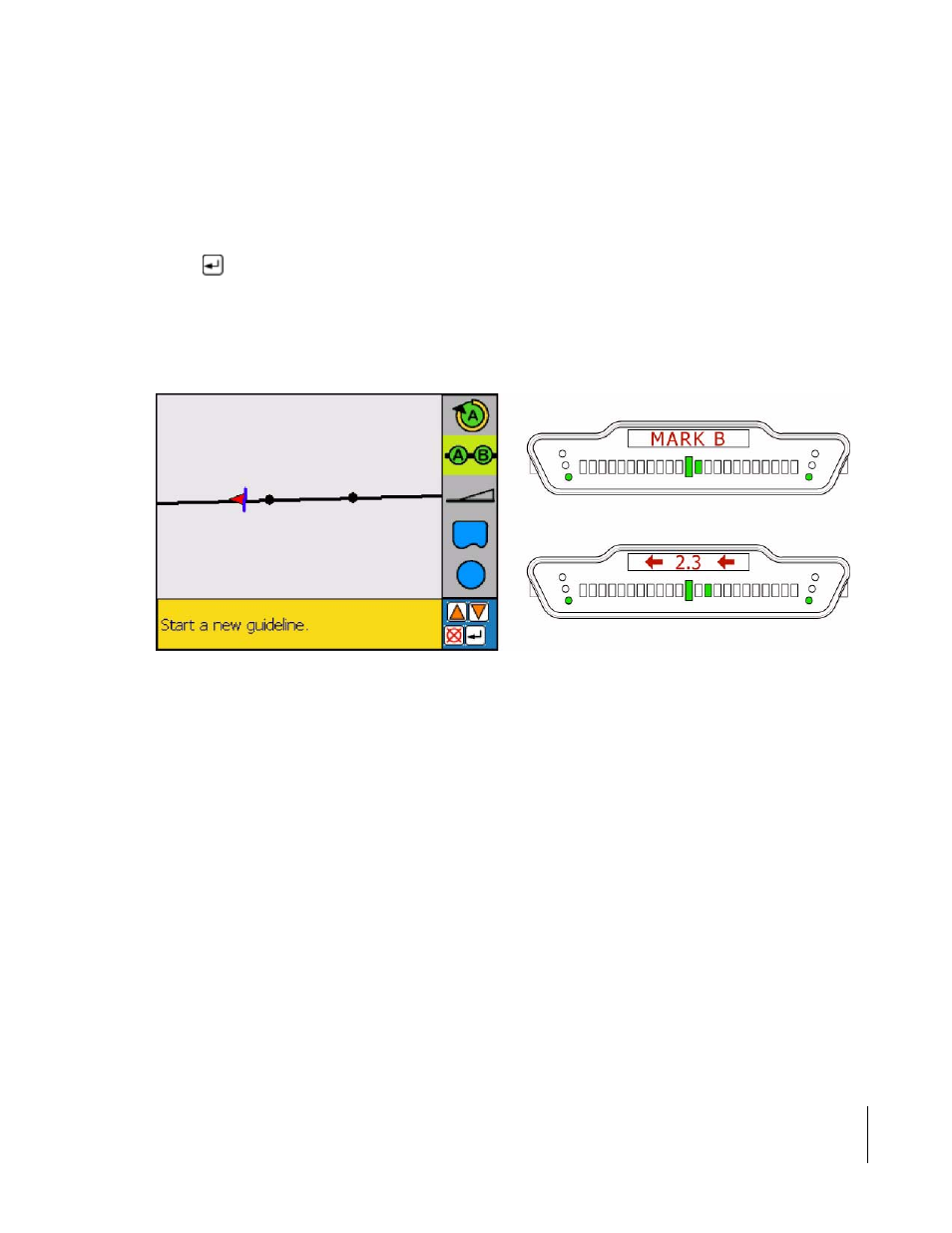

Figure 3-62: Initial Guideline Established
