Chapter 4 - Waypoint Navigation 4-15
Data Setup
Data Setup
Data setup will contain menu items that allows you to set up how you would like to create and store data during the
real - time portion of SmartPad II Nav 2 Point. There are five menu items under data; Point/Grid File, Boundary,
Background, Sample Number and Sample Name. If you elect to utilize any of the four menu items, then you will be
prompted for a file name or other related information once the Start Nav 2 Point process is implemented. There are
some examples of how this process will work at the end of this section.
To access the Data menu page, highlight the Setup menu item in the Nav 2 Point Main menu page and press . This
takes you to the Setup menu page, see Figure 4 -14. Within the Setup Menu select the Data menu item using the arrow
keys . Press to enter the Data menu page. Once in the Data menu page, you can change any of the Data
menu items by highlighting the desired menu item and pressing .

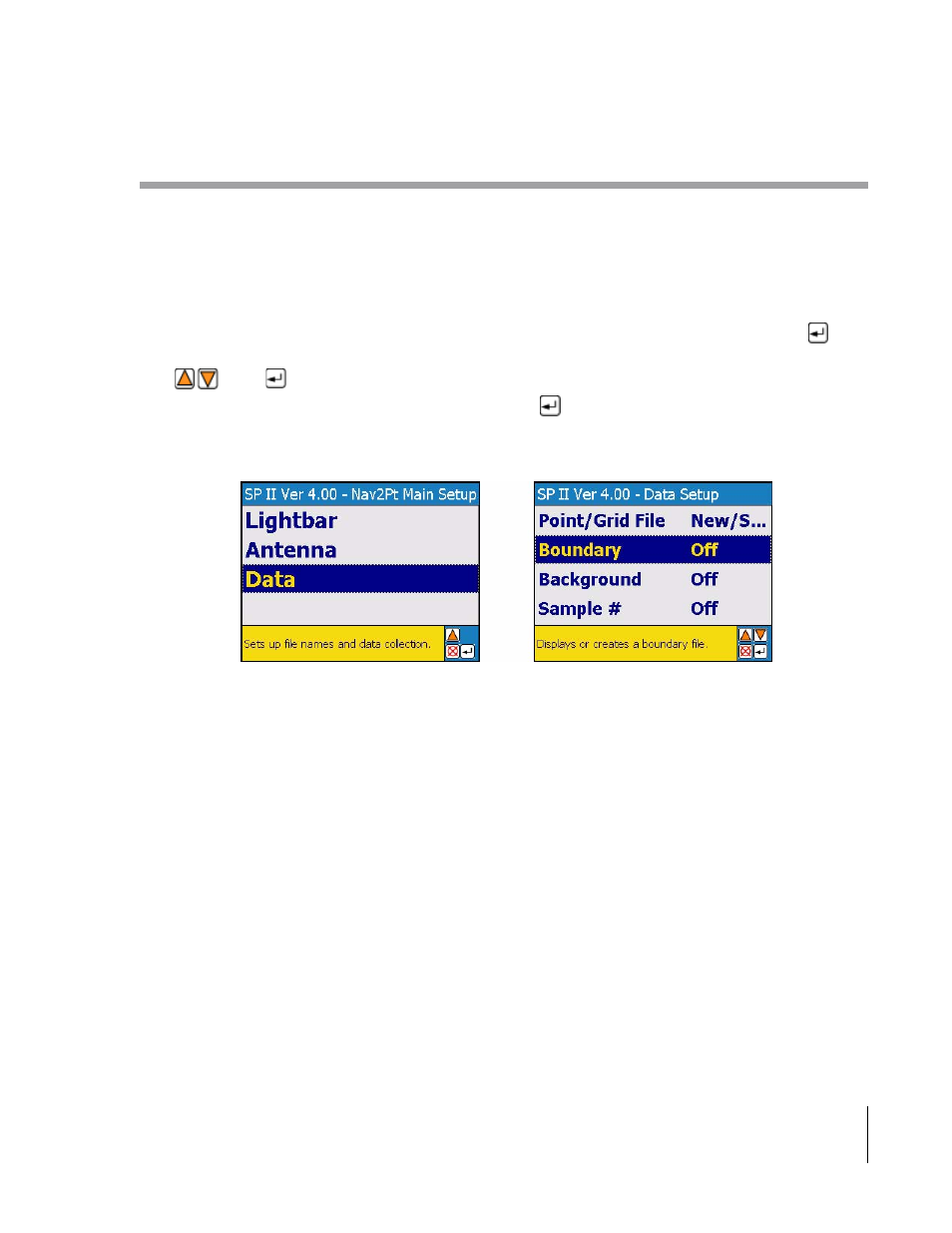

Figure 4-14: The Nav 2 Point Data Setup Menu
