5-24 Chapter 5 - Field Mapping
The Polyline Mark Mode
Fieldware for Smartpad II
Software Version 4.03
The Polyline Mark Mode
This mode is used to map or locate features that can be represented by a line made of discrete points. A line will be
mapped between dropped points at the designated antenna location.
To map a polyline mark select the polyline mark button, once selected a name must be established Figure 5-31. After
a name is entered begin driving the path to be located. Notice when the polyline mark button is selected the button
changes to Mark Polygon Point button see Figure 5-32. Drop points by selecting the mark polygon point button
whenever a point should be dropped. To end the line press the finish flag button and all Mapper modes will appear in
the button bar.

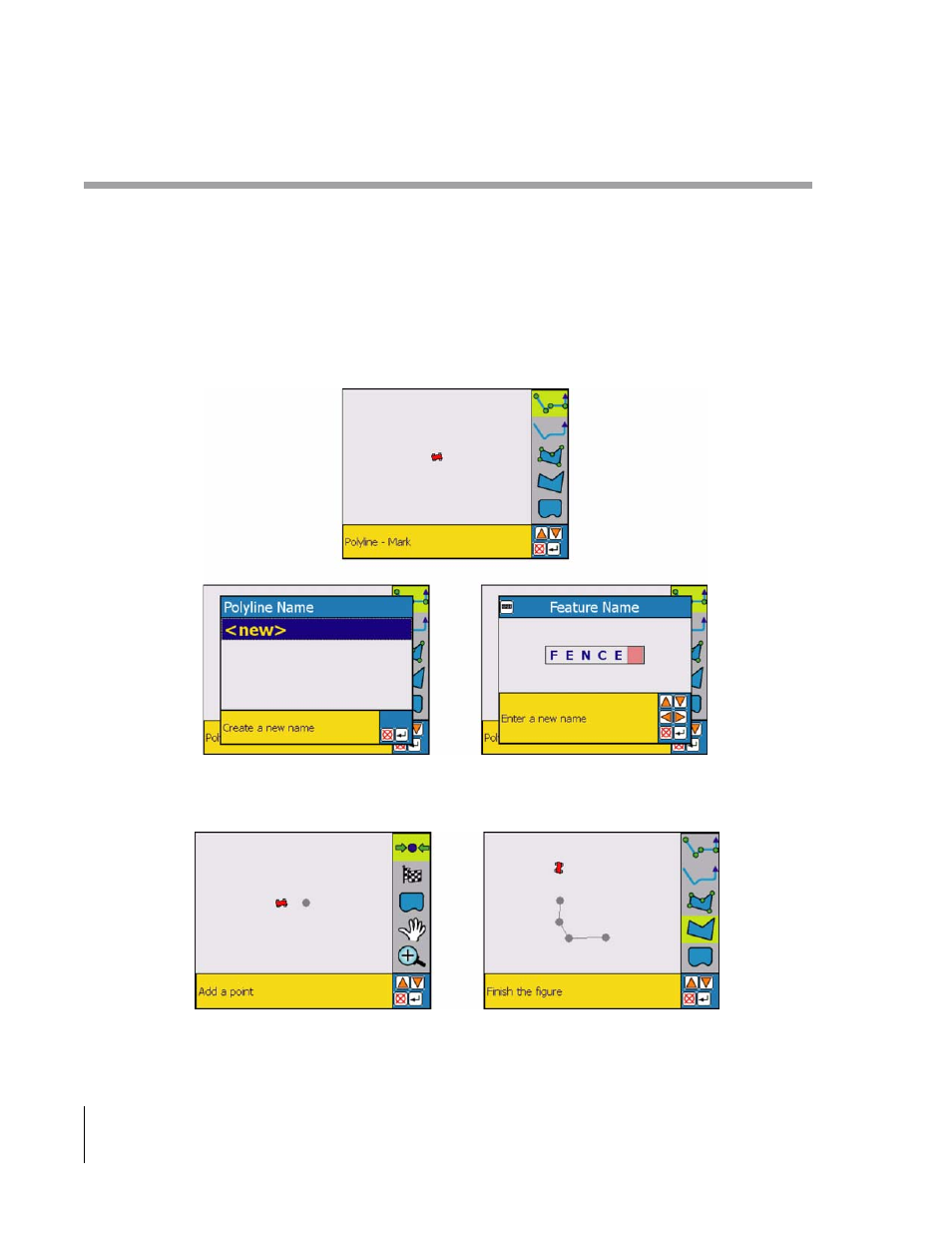

Figure 5-31: Polyline Mark Setup
Figure 5-32: Ending a Polyline Mark
