Chapter 3 - Real-Time Guidance 3-75
Lightbar Index
Swath XL / GuideLine Lightbar

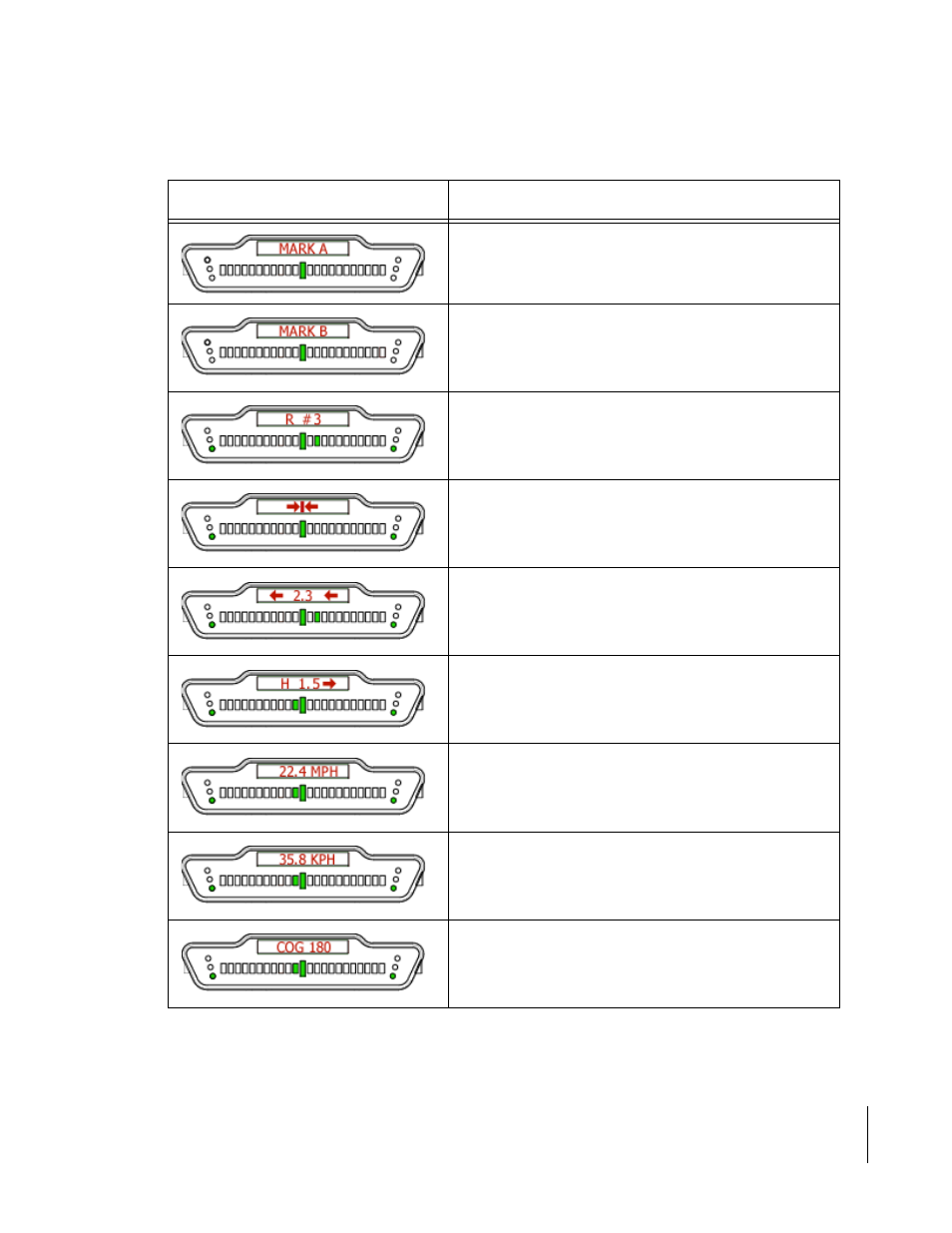

Lightbar State Description
Mark A: Displayed when establishing the guidance point A
of the initial guideline.
Mark B: Displayed when establishing the guidance point B
of the initial guideline.
Swath #: A user selected lightbar message. When not on the
initial guideline the first character is either L or R for Left
and Right of the initial guideline. The number identifies
how many lines left or right of the initial guideline.
X-Track Error: A user defined lightbar message. This cross
track error message is displayed when the vehicle is on the
guideline and there is no error.
X-Track Error: A user defined lightbar message. In this
example the operator should steer to the left 2.3 ft. (Assum-
ing the system unit is set to US and Lightbar is set to Swath
mode.)
Vehicle Heading Error: A user defined lightbar message
indicating the current heading error between vehicle head-
ing and the bearing of the guideline in degrees and decimal
degrees. The arrow indicates steering direction.
Ground Speed: A user defined lightbar message indicating
the vehicle speed in Miles per Hour (MPH). System unit is
set to US.
Ground Speed: A user defined lightbar message indicating
the vehicle speed in Kilometers per Hour (KPH). System
unit is set to Metric.
Course on Ground (COG): A user defined lightbar message
indicating the vehicles heading in degrees 0 to 359. The
example to the left indicates the vehicle’s course on the
ground is due South (180 degrees).
Table 3-17: SmartPad II Swath XL / GuideLine Lightbar Index
