SmartPad II
Software Version 4.03
Chapter 3 - Real-Time Guidance 3-79

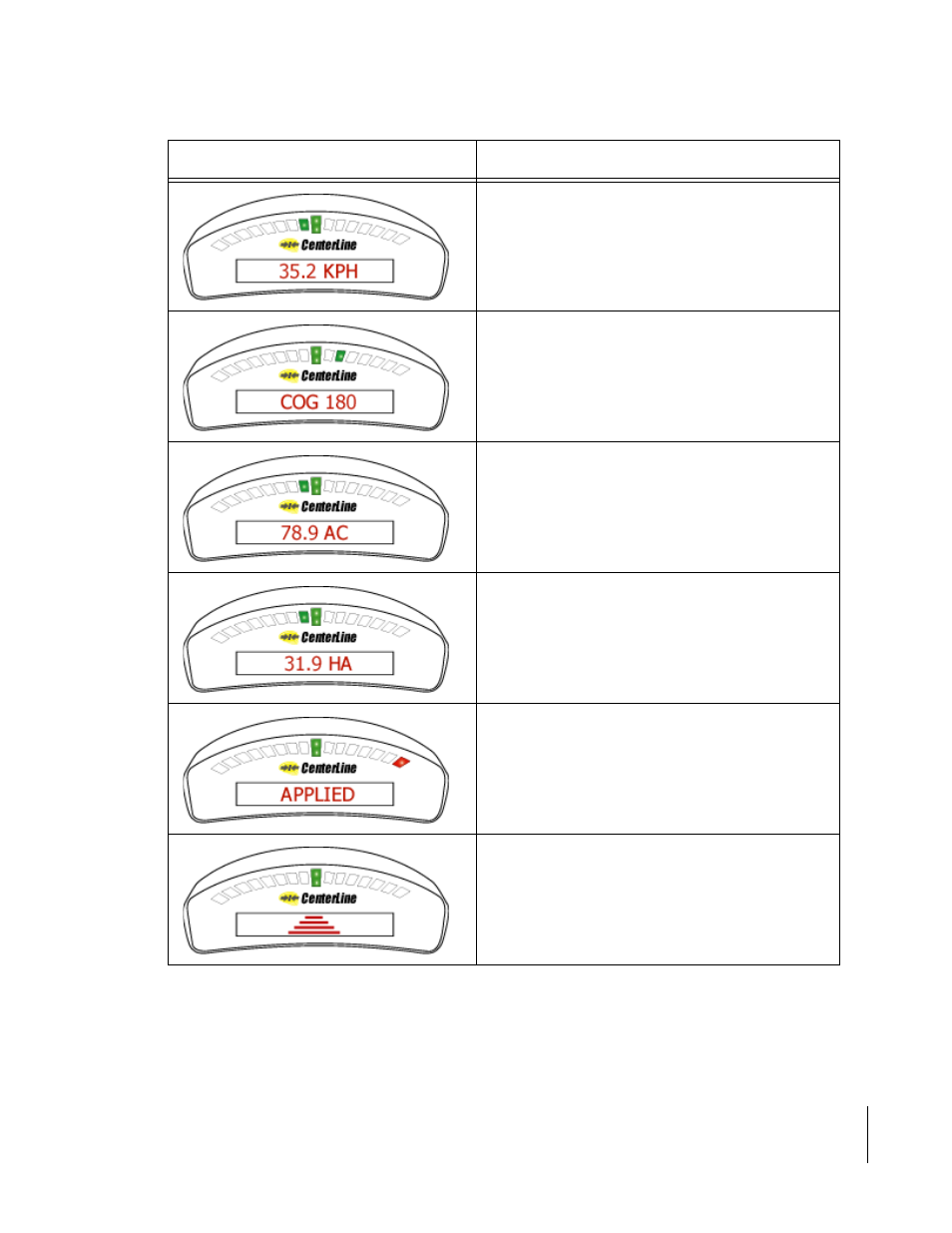

Lightbar Index
Ground Speed: A user defined lightbar message indicat-
ing the vehicle speed in Kilometers per Hour (KPH).
System is Units set to Metric.
Course on Ground (COG): A user defined lightbar mes-
sage indicating the vehicles heading in degrees 0 to
359. The example to the left indicates the vehicle’s
course on the ground is due South (180 degrees).
Area Applied: A user defined lightbar message indicat-
ing the current amount of area applied in Acres. System
Units is set to US.
Area Applied: A user defined lightbar message indicat-
ing the current amount of area applied in Hectares. Sys-
tem Units is set to Metric.
Applied Area Detection: This message is displayed
when the vehicle is within a previously applied area.
Note that the Red stop light (far right light) is illuminated.
See.
Curved guidance information graphics. The four hori-
zontal bars in the text display represent a perspective
view of the swath ahead of the vehicle. The bars skew
left or right to represent the curved path ahead.
Lightbar State Description
