Communications Setup
Communications Setup
The Communications Setup menu defines the SmartPad II GPS serial port parameters. There are four menu items
associated with this menu page, Baud rate, Data Bits, Stop Bits and Parity, see
Table 2-1.
NOTE: When using a CenterLine Lightbar the Communications menu will not be available because the baud rate is
hard coded when the SmartPad II detects a CenterLine lightbar.
To access the Communications menu page, highlight the Setup menu item in the Main menu page and press . This
takes you to the Setup menu page, see Figure 2-12 (right side). Within the Setup Menu the select the Communications
menu item using the arrow keys . Press to enter the Communications menu page. Once in the Communi-
cations menu page, you can change any of the Communications menu items by highlighting the desired menu item
and pressing .

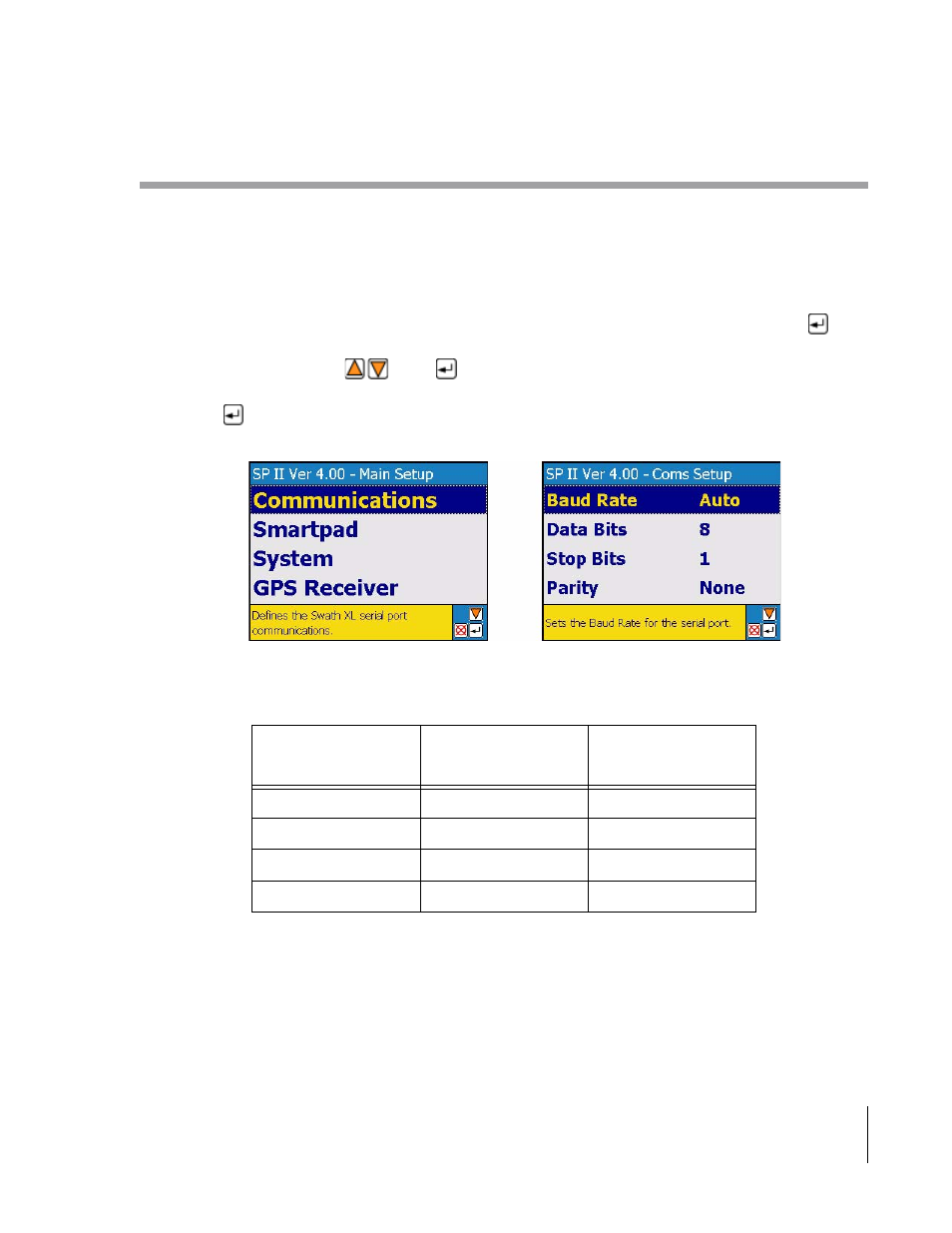

Figure 2-12: Accessing the Communications Menu Page
Setting Name Default Value
Change at 1st
Time Start up
Baud Rate Auto Not Recommended
Data Bits 8 Not Recommended
Stop Bits 1 Not Recommended
Parity None Not Recommended
Table 2-1: Communication Menu Item Default Settings
