Instruction Manual

4

Connecting a Local Keyboard, Mouse, and Monitor

SVxx41HDIE has the capability to connect a local keyboard, mouse, and monitor to

the host computer for maintenance and monitoring, allowing users to physically use

the host computer as though SVxx41HDIE were transparent. If needed, the unit can be

run through a typical KVM switch like any other computer. Using a KVM cable, you can

connect the Server Remote Control’s host computer inputs to the “console” connectors

on a KVM switch allowing you to control more than one computer remotely using a

single Server Remote Control. If cascading, the SVxx41HDIE can only be the Master.

Consult the documentation that came with the other KVM switches for more details on

how to make the necessary connections.
To connect console devices:
1. Connect a standard PS/2 keyboard to the Local Keyboard port on 1. the rear panel of

the KVM switch.

2. Connect a standard PS/2 mouse to the Local Mouse port on the rear 2. panel of the

KVM switch.

3. Connect a SVGA-compliant monitor to the Local Video port on the 3. rear panel of

the KVM switch.

4. Power on the KVM switch.

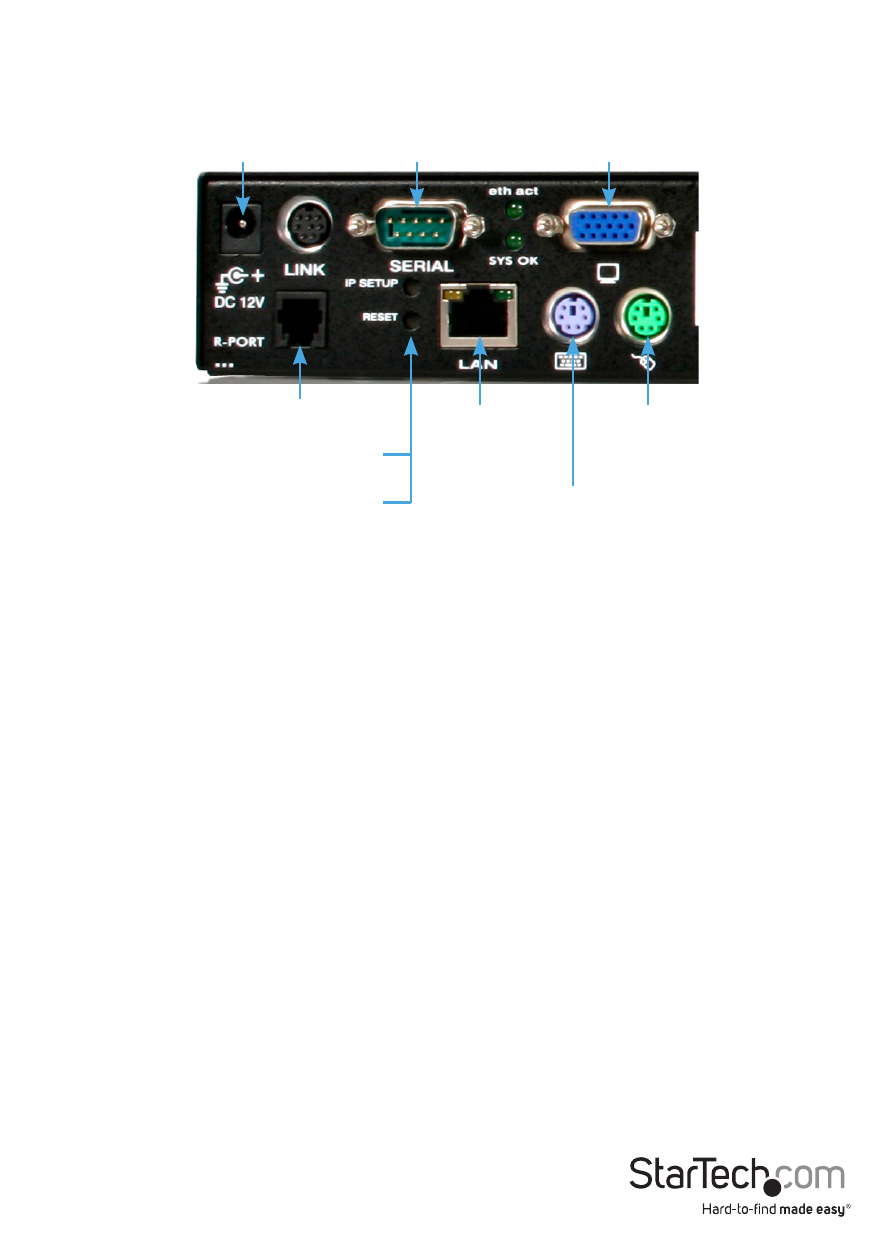

Power

Connector

R-Port

LAN Port

(RJ45)

Local Video

(VGA)

Local Keyboard

(PS/2)

IP Setup Button

Soft Reset Button

DB9 Serial

Port

Local Video

(VGA)
