Instruction Manual

26

KVM Menu: Generates the key sequence used to access the on-screen menu for an

enterprise-class KVM switch. When these conventional KVM switches are combined

with the IP KVM switch, this key makes accessing their built-in menu easier,

especially from the Java client. This button will only be shown when an external

KVM has been enabled via the web interface.

Bribar: Closes or reopens the Bribar window along the bottom of the screen.

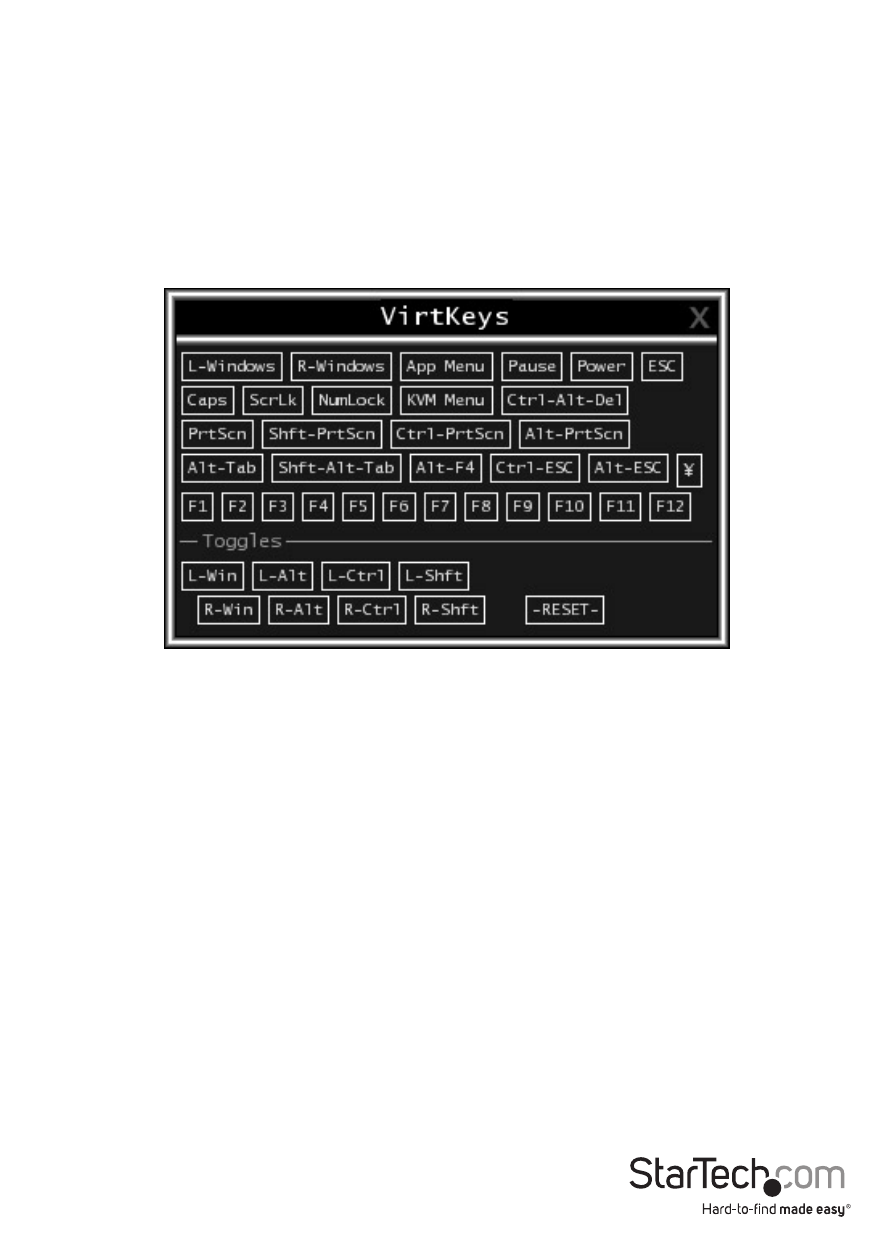

VirtKeys Menu

Clicking any button in the top half of the window simulates pressing and releasing

the indicated key. In the bottom area of the screen, clicking will simulate the indicated

Meta key being pressed. You may then click in the top part to send another key and

release the Meta key at the same time. Alternatively, you may move the mouse outside

this window, press the regular key, and then choose -RESET- to release all depressed

keys. The VirtKeys menu can be left open while using the host system. You can then

click the required button at the suitable time, and still interact with the host in a

normal fashion.
Examples:
[Ctrl]-[Alt]-[F4]: Use L-Ctrl then L-Alt in the Toggles area. Then click F4.
• To bring up the Start menu under Windows: Click the L-Windows • button at the top

left of the above window.
