Video Tuning Menu

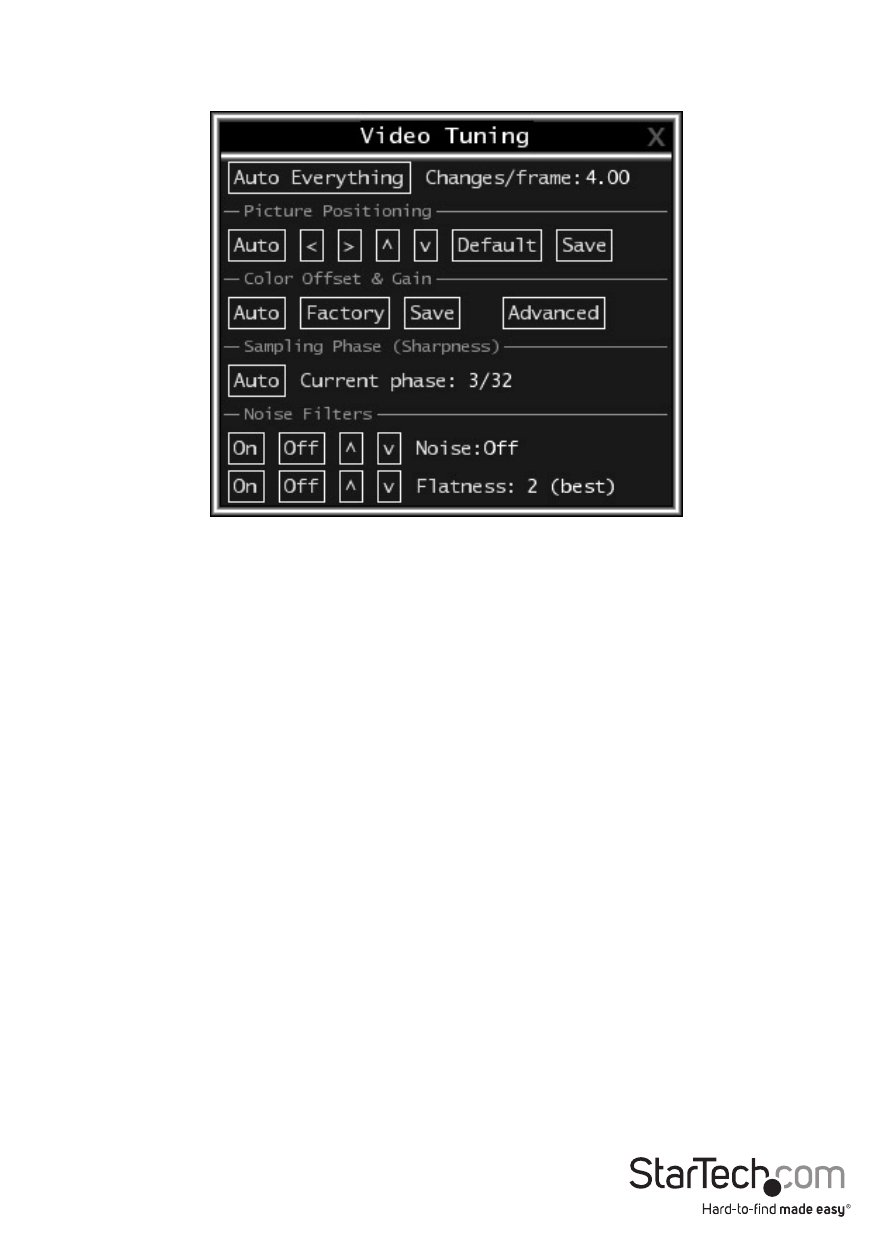

Use the Auto Everything button to automatically fine-tune all three adjustments. If

the test pattern for Color Offset calibration is not present on the screen, then the Color

Offset adjustment is skipped.
Changes/frame indicates the number of 16x16 blocks of video that are being sent, on

average, for every frame of video. With a static image being displayed by the server,

this number will be zero (shown as -nil-). Moving the mouse, for example, will cause

the number to jump to about 2 or 3.You may use this number to judge the picture

quality as you adjust the controls on this menu.
Picture Positioning affects the image position on your screen. If you see a black line on

either side of your screen, or at the top or bottom, you can use the arrow buttons to shift

the image in that direction. Pressing Auto does the same thing for you automatically. Use

Save to save the changes you have made manually. Since this adjustment depends on

the video mode, separate values are stored for each video mode.

Color Offset is a fine tuning adjustment that requires the use of a test pattern. There is

a copy of the test pattern available on the Help!menu of the integrated web server. You

must arrange for that image to be shown on the host computer. Do not allow scaling,

cropping or any other changes to that image. Press the Auto button and the system will

calibrate color for the best possible picture in approximately one minute. If the system

cannot find the test pattern on the screen, it will say so. Check that the pattern isn’t

scaled or covered up. It’s important to perform this operation in 24-bit or 32-bit color

video mode (i.e. True Color). Although the algorithm may work in 16-bit or 8-bit color

video modes, the results will not be optimum and usually it won’t be able to recognize

the test pattern.
