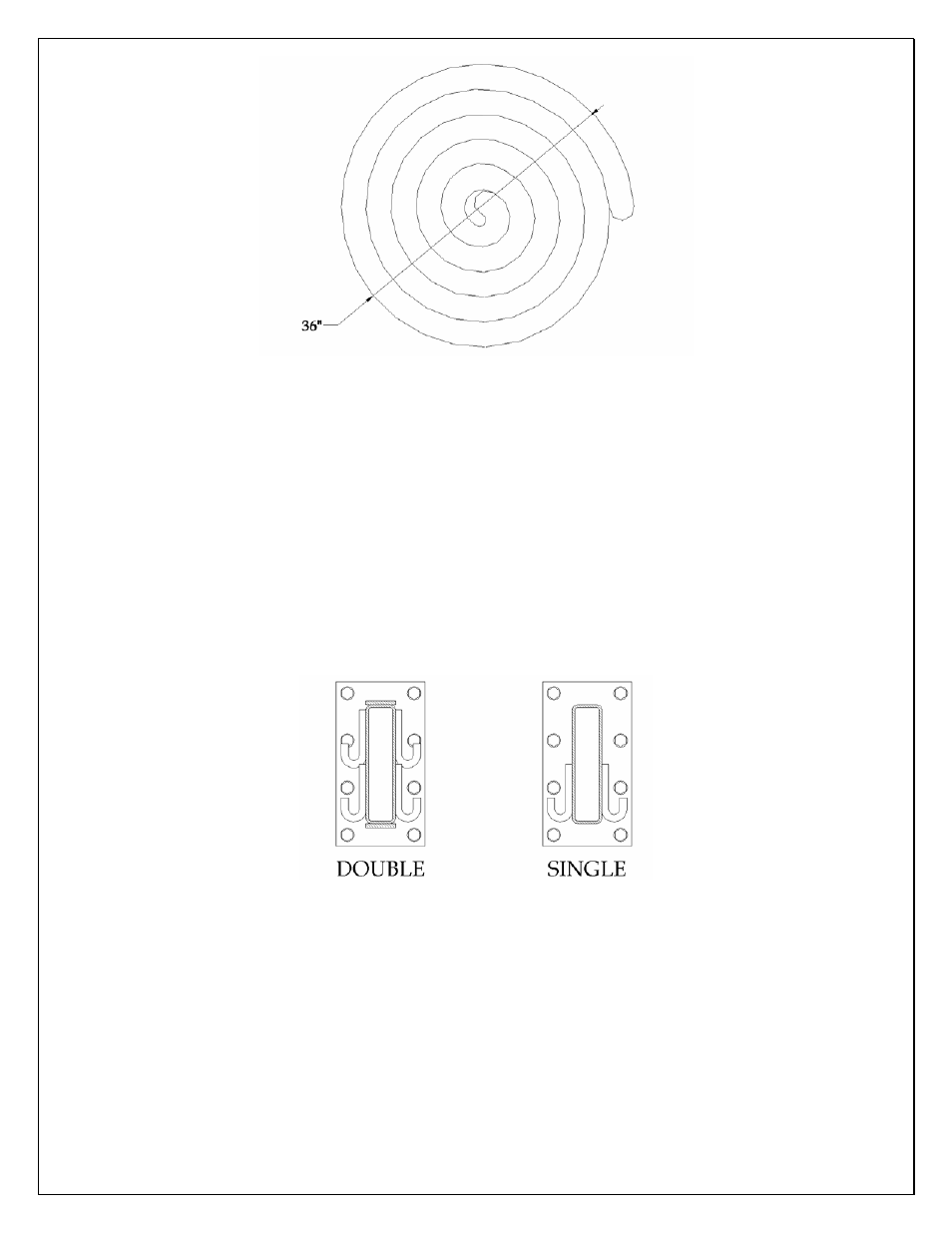

Figure 3: End View of Rolled Mat - 36" Diameter
e. Replacement slings should be ordered at the first sign of wear on the straps. Call factory at 1-
800-243-0533 for assistance.
3. Attachment of Sling onto Load Bar
a. After centering rolled mat onto sling, place rings at the ends of the straps over the hooks on the
load bar. Do not skip any hooks or double up multiple straps on load bar hooks. Keep straps as
straight and even as possible.
b. If model is designed for two mats (double mat hoist) there will be an upper and a lower set of
hooks on the load bar. There will be a pulley connected to the eyebolt on the load bar. If this is
not the case then do not lift more than one mat with the unit.
Figure 4: End View of Double & Single Load Bar Models
c. Make sure the slings you have are the correct ones for the given storage method required. If
alternate or replacement slings are needed call Jaypro directly at 1-800-243-0533. (There are
three (3) different types of slings dictated by the three models shown below – single, double,
and side-by-side double or offset.)
d. There are two double hoist models – vertical (top/bottom) storage for mats arranged one above
the other, and side-by-side storage. See image below for distinguishing between the various
models.
i. In the case of the vertical model, make sure the upper set of hooks is used for the
lower mat and the lower hooks for the upper mat (see view below).
