© 2005 Jaypro Sports Equipment JSL-Inst001 Rev G 10-24-2006 19 of 40
d. Hoists must be level with the floor. If this is impossible due to the orientation of the steel
structure then STOP – do not proceed with installation. Beams must be level with the floor or
slippage of the winches is possible and a dangerous situation will result.
e. Hoists may be located at different elevations as shown below. Pay particular attention to
leveling of hoists. Hoists must be perfectly level with floor. Add shims or adjust nuts on
threaded rods as needed. Consult installation drawings supplied with equipment for more
details.

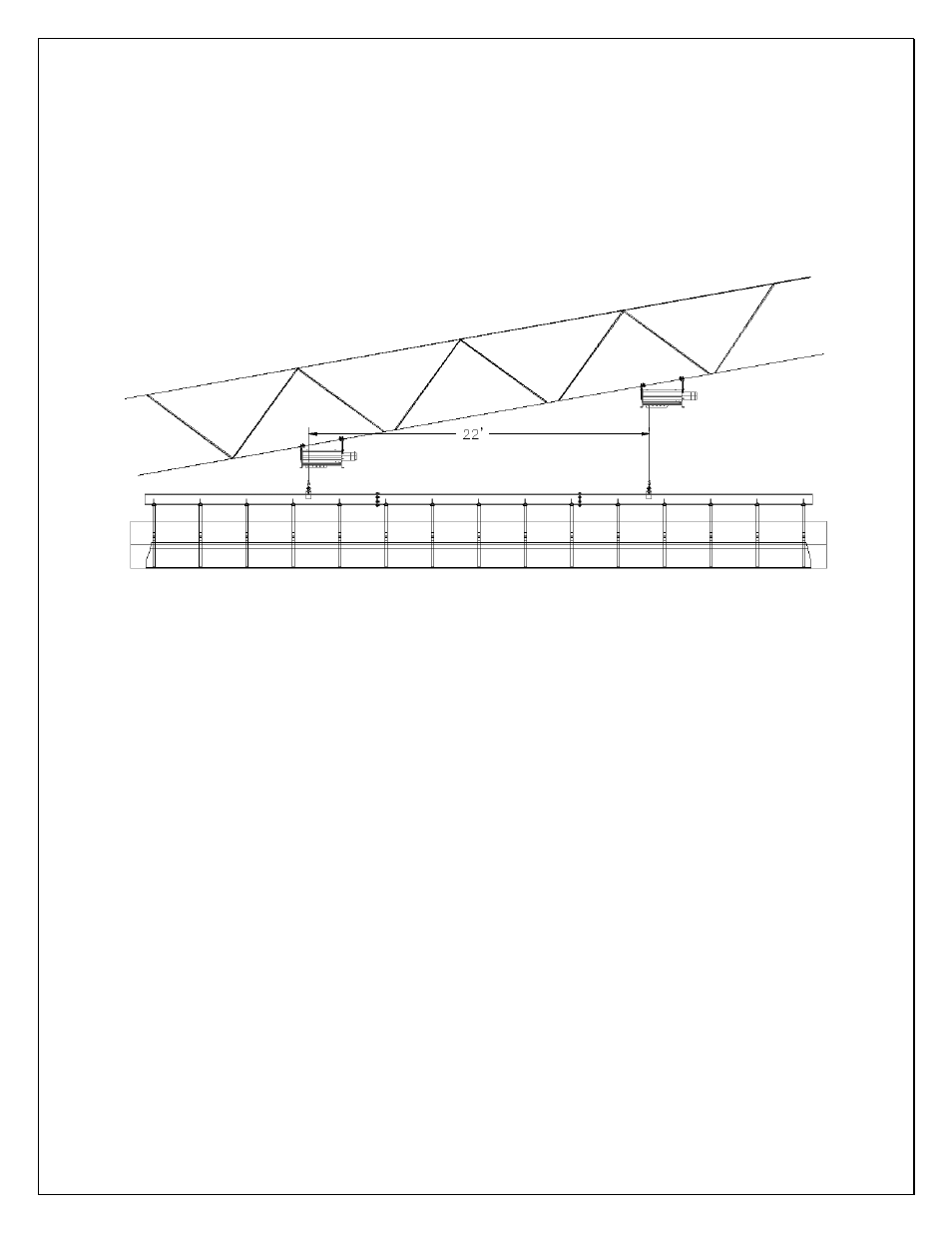

Figure 17: Hoist System Installed on Sloped Beam
4. Wall mount unit winch installation
a. Mount wall mount brackets as shown in drawing below. Note importance of structural
adequacy of the wall at this point. If for any reason you do not feel comfortable with the
integrity of the wall then STOP – have an architect or structural engineer review and verify the
wall is capable of handling the load.
b. Make sure top surfaces of brackets are even with each other, and are level and square with the
floor.
c. Twelve (12) ¾” Diameter thru-bolts are required for installation of wall brackets. These
anchors are the responsibility of either the installer or general contractor. Jaypro does not
supply these items.
d. Orient two winches as shown in drawing below. Due to the nature of a wall-mounted
installation, the winches must be oriented as shown. If for any reason this cannot be
accomplished due to obstructions or space availability, STOP – do not proceed with installation
until obstructions are removed or other issues are resolved.
