Jaypro Sports 656 - Manual

1 4 OF
PHONE:
800.243.0533 (TOLL FREE)
860.447.3001 (LOCAL) FAX:
860.444.1779 (SALES)
860.440.0628 (ENG.)
656 INSTALLATION INSTRUCTIONS
656 INSTALL
A N/A
DONL
THIS DRAWING IS THE SOLE PROPERTY OF JAYPRO SPORTS INC. AND MAY
NOT BE REPRODUCED WITHOUT WRITTEN PERMISSION OR CONSENT
JAYPRO SPORTS, LLC, 976 HARTFORD TURNPIKE, WATERFORD, CT 06385 USA
www.jaypro.com
DESCRIPTION
PART NUMBER DWN BY
C
REV
2/16/2010
DATE SIZE SHEET SCALE
CHKD BY
WVB

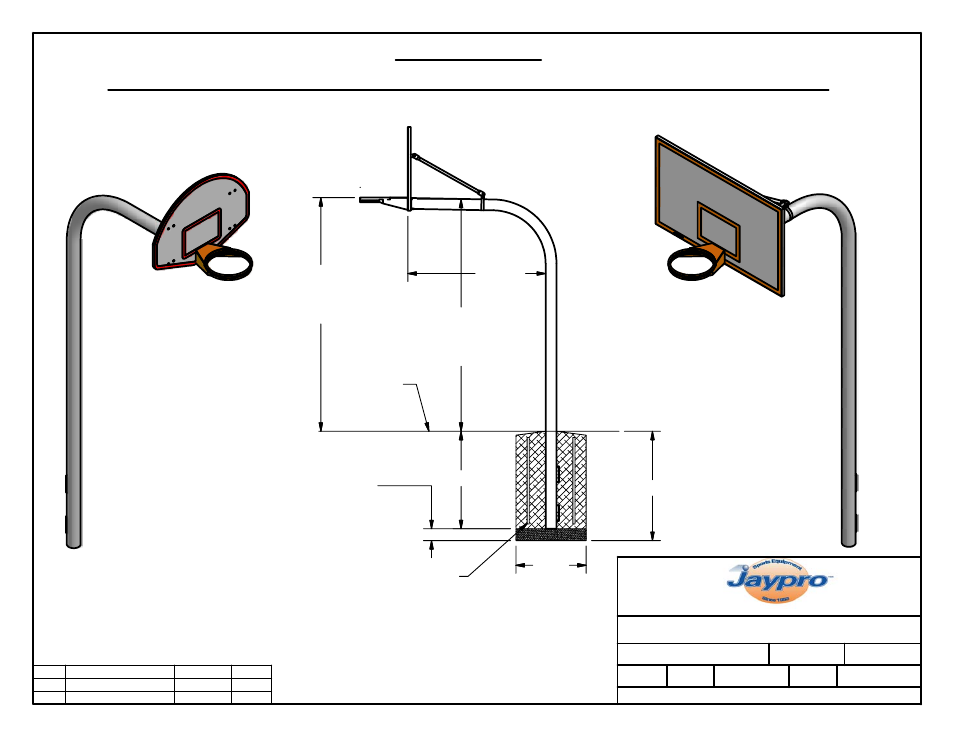

MODEL 656
5 9/16 in ROUND POST 6 FOOT EXTENSION, GOOSENECK
*Actual dimension may vary depending on
choice of backboard used.
PLAYING
SURFACE
56 in
50 in
71 in *
119 in
CENTER OF TOP
MOUNTING HOLE
TO PLAYING SURFACE
120 in
TOP OF GOAL
TO PLAYING
SURFACE
36 in
RECOMMEND 3/4'' x 42'' (4 PLACES)
REBAR TO BE TIED TOGETHER
(TO BE SUPPLIED BY INSTALLER) FOOTING DETAIL
C BR45 WAS BRC30 6/10/2010 DRL
B REVISED FOOTING 3/17/2010 DRL
REV DESCRIPTION DATE BY
6 in CONCRETE PAD
OR DOUBLE 6" CONCRETE BLOCKS
T:\Aftermarket\Basketball\BASKETBALL OUTDOOR\PRODUCTION\656\656 INSTALLATION.idw
Fan board does not require
rear bracing.
