C-PRO KILO HARDWARE MANUAL
Page 51
7 CAN Connection
C-PRO KILO can be connected to other controllers, to expansion modules and to one or more user interfaces
using either local or wide CAN serial port. The CAN bus uses the ISO 11898 standard, a balanced two-wire
communication very similar to the RS 485 standard.
Resistors with a recommended rating of 120-124 ohm have to be fitted at each end of the bus.
If connection is established through the Local CAN bus, it is possible to power a user interface using the 4-
terminal connector, according to the following table:
C-PRO KILO V-VIEW User Interface
PA 1 (VCD) needs independent power supply
C3-1 (CAN+) PA 2 (CAN+)
C3-3 (CAN-) PA 3 (CAN-)
C3-2 (GND ) PA 4 (GND )
The maximum number of expansions and user terminals is 32.
The maximum number of controllers for the user terminal V-VIEW is 2.

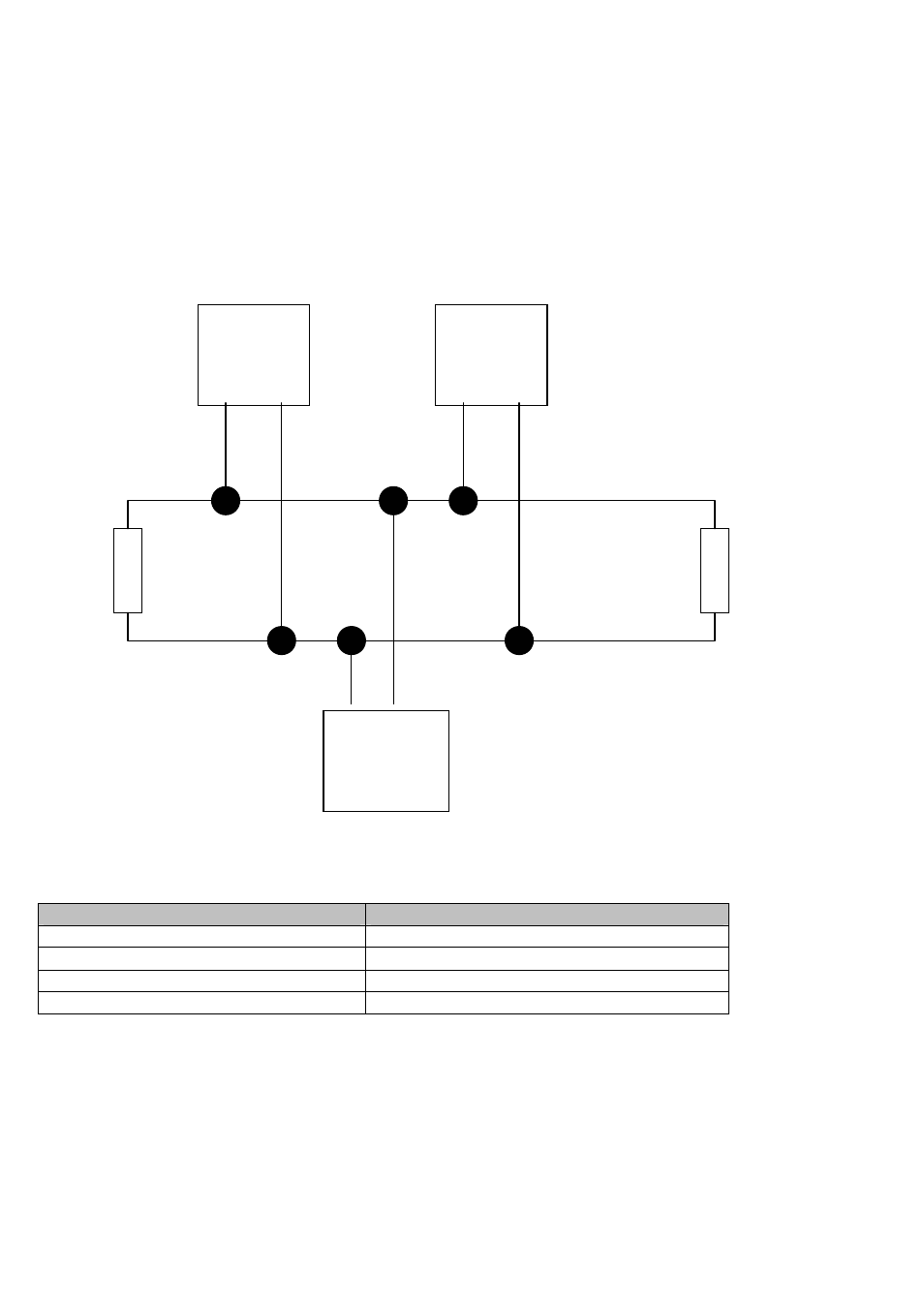

CAN
NODE
(C-PRO
KILO)
CAN
NODE
(V-VIEW)
CAN
NODE
(C-PRO EXP
KILO)
120ohm 120ohm
CAN+
CAN-
