6.5
Programming accessories
6.5.1

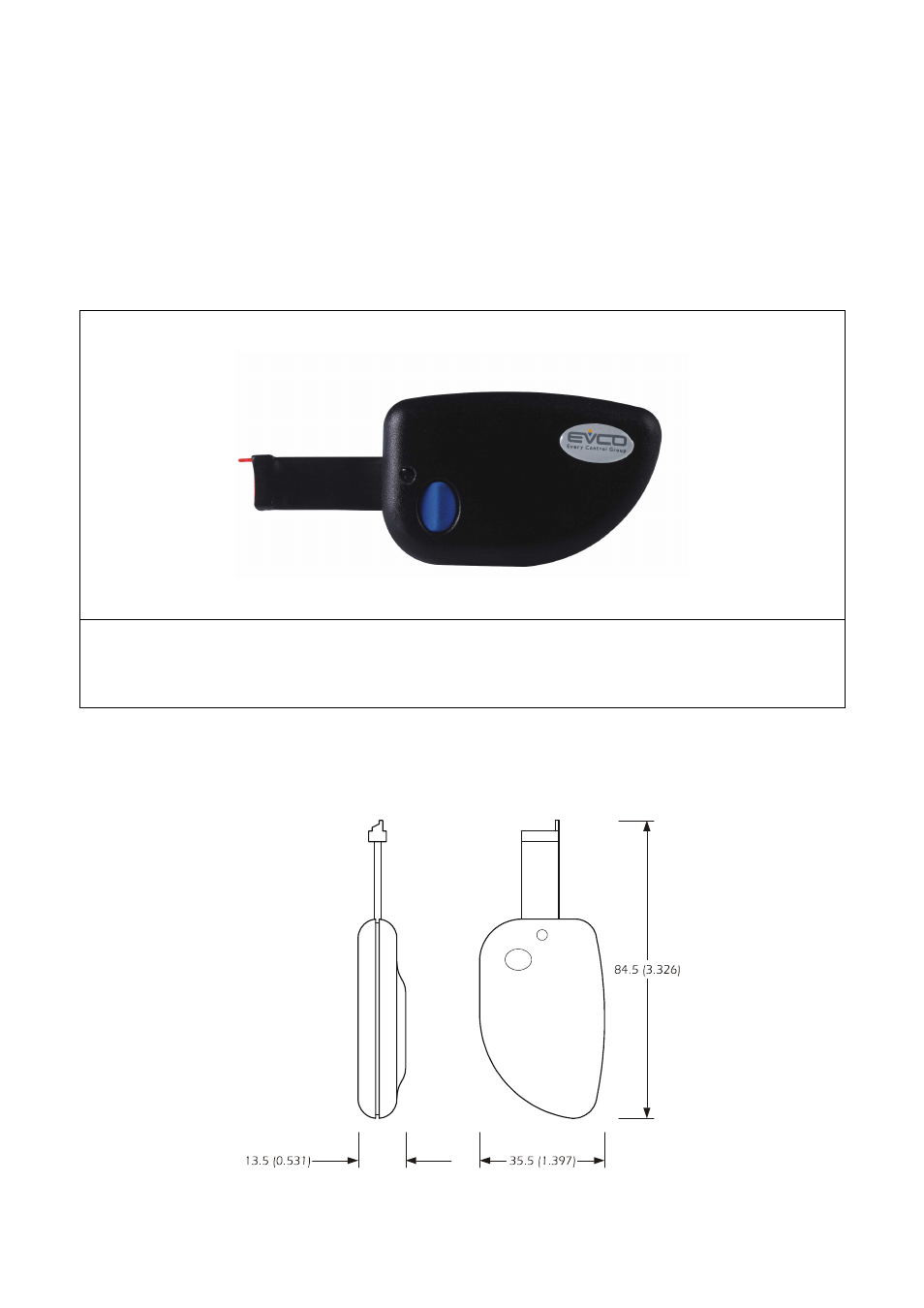

EVKEY programming key
The EVKEY programming key allows configuration parameters to be downloaded/uploaded (even with the
controller not powered up; in this case it is necessary to use the EVPS power supply).
The key is connected to the specific AMP micro-match 6 pin connector, also used for monitoring and
programming.
EVKEY
Programming key
6.5.2
EVKEY dimensions
The mechanical dimensions of the EVKEY are indicated below; the measurements are expressed in mm (in).
