C-PRO KILO HARDWARE MANUAL
Page 46
6.3.1 EVDFAN1 electrical connections (wiring)
The EVDFAN1 module wiring layout is shown below, with a table giving the meanings of the connections.

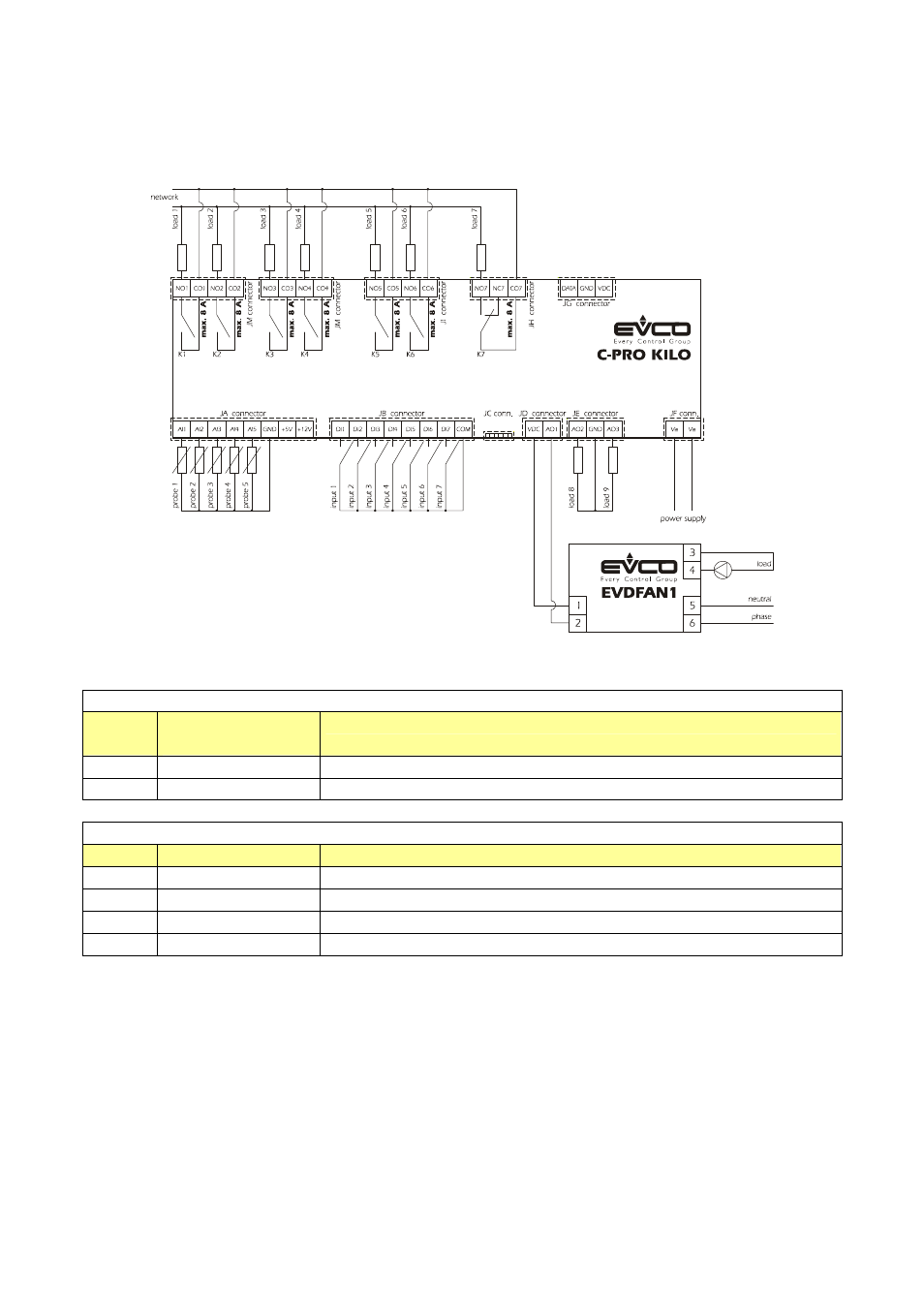

Connecting the C-PRO KILO to an EVDFAN1 module
Terminals 1 and 2 : Control input (Phoenix detachable terminal block)
Termin
al
Abbrev. on the
controller
Description
1 VDC Phase chopping module power supply (12 VDC)
2 AO1 Phase chopping control input
Terminals 3, 4, 5 and 6 : Power connectors (FAST-ON)
Conn. Abbrev. Description
3 - Load
4 - Load (Neutral)
5 - 230 VAC neutral
6 - 230 VAC live
Example:
VAC = 230 VAV
I max. = 5 A
VA (max.) = 230 x 5 = 1150 VA
W (max.) = 230 x 5 x cosφ = 1150 W if cosφ = 1
