C-PRO KILO HARDWARE MANUAL
Page 50
6.5.3 EVPROG programming kit
The EVPROG programming kit allows programs to be downloaded to the C-PRO KILO controller flash
memory (even with the controller not powered up; in this case, it is necessary to use the EVPS power supply).
The EVPROG is connected to the specific AMP micro-match 6 pin connector, also used for the parameter
programming key and/or supervision.
The kit consists of the following components:
1.
EVIF20TRX interface.

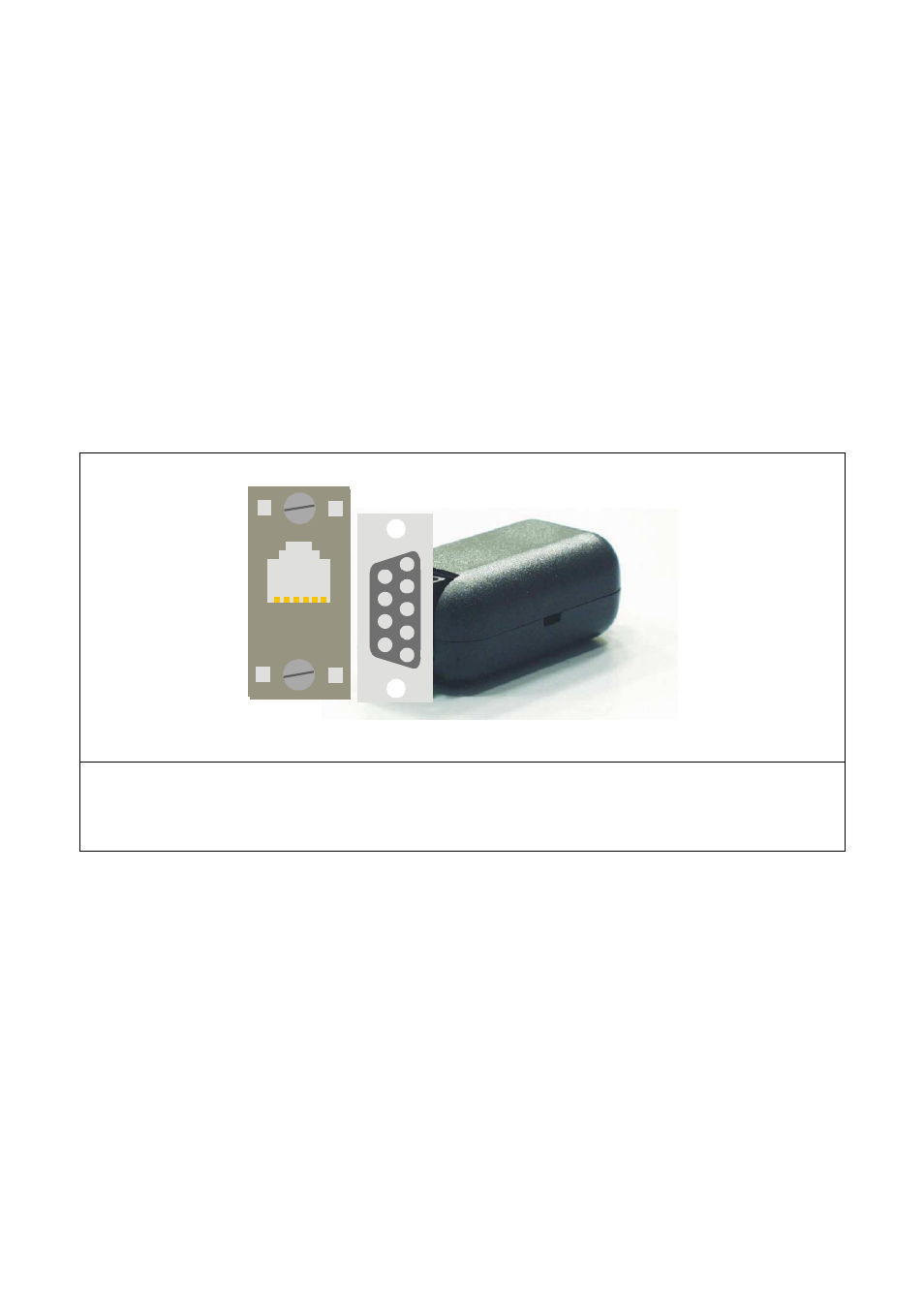

2. PONY PROG tray adapter (9 pin – RJ 11).
3. ECCC506 telephony cable.
Configuring the EVPROG kit hardware:
1.
Connect the PONY PROG tray adapter to the computer serial port.
2. Connect the EVIF20TRX interface to the controller AMP micro-match connector.
3. Connect one end of the ECCC506 telephony cable to the Pony Prog tray adapter, and the other end
to the EVIF20TRX interface.
A B CD EF
1
2
3
4
5
6
7
8
9
RJ11 / DB-9 Micro-Match / RJ11
EVPROG
Programming kit
