C-PRO KILO HARDWARE MANUAL
Page 34

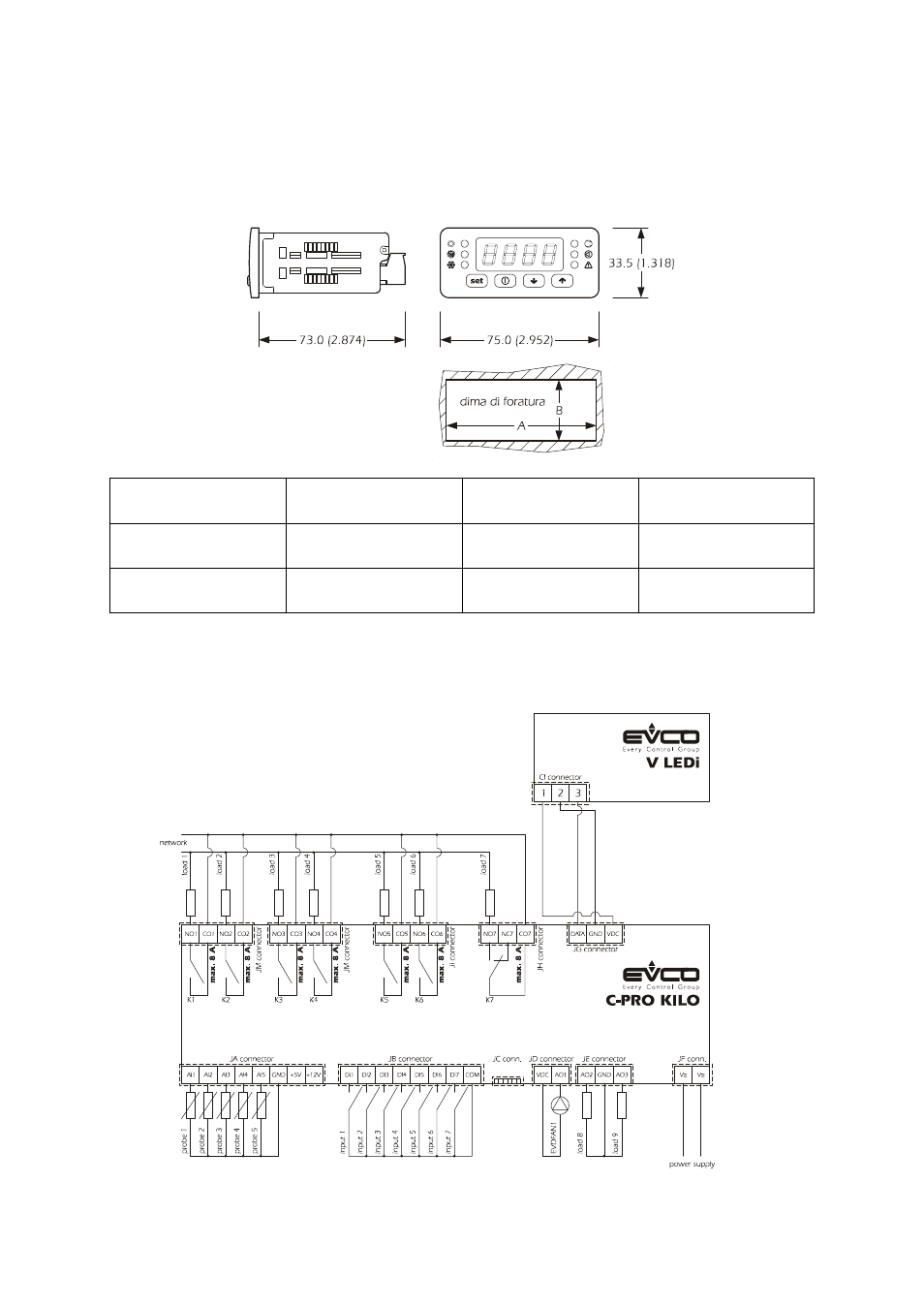

6.1.1 V LEDi dimensions/installation
The V LEDi mechanical dimensions are given below; the measurements are expressed in mm (in); for fixing,
use the snap-on brackets supplied.
DIMENSION MINIMUM TYPICAL MAXIMUM
A 71.0 (2.795) 71.0 (2.795) 71.8 (2.826)
B 29.0 (1.141) 29.0 (1.141) 29.8 (1.173)
6.1.2 V LEDi electrical connections (wiring)
The V LEDi user terminal wiring layout is shown below, with a table giving the meanings of the connections.
Connecting the C-PRO KILO to a V LEDi
