C-PRO KILO HARDWARE MANUAL
Page 38
6.1.6 V WALL electrical connections, when the user terminal is powered from the controller
The V WALL user terminal wiring layout is shown below, with a table giving the meanings of the connections.
The maximum length of the C-PRO KILO to V WALL connecting cable is 1 m.
Make the connection between the C-PRO KILO module and the V WALL module using a twisted pair cable;
ensuring that the cabling does not run adjacent to any high voltage components.

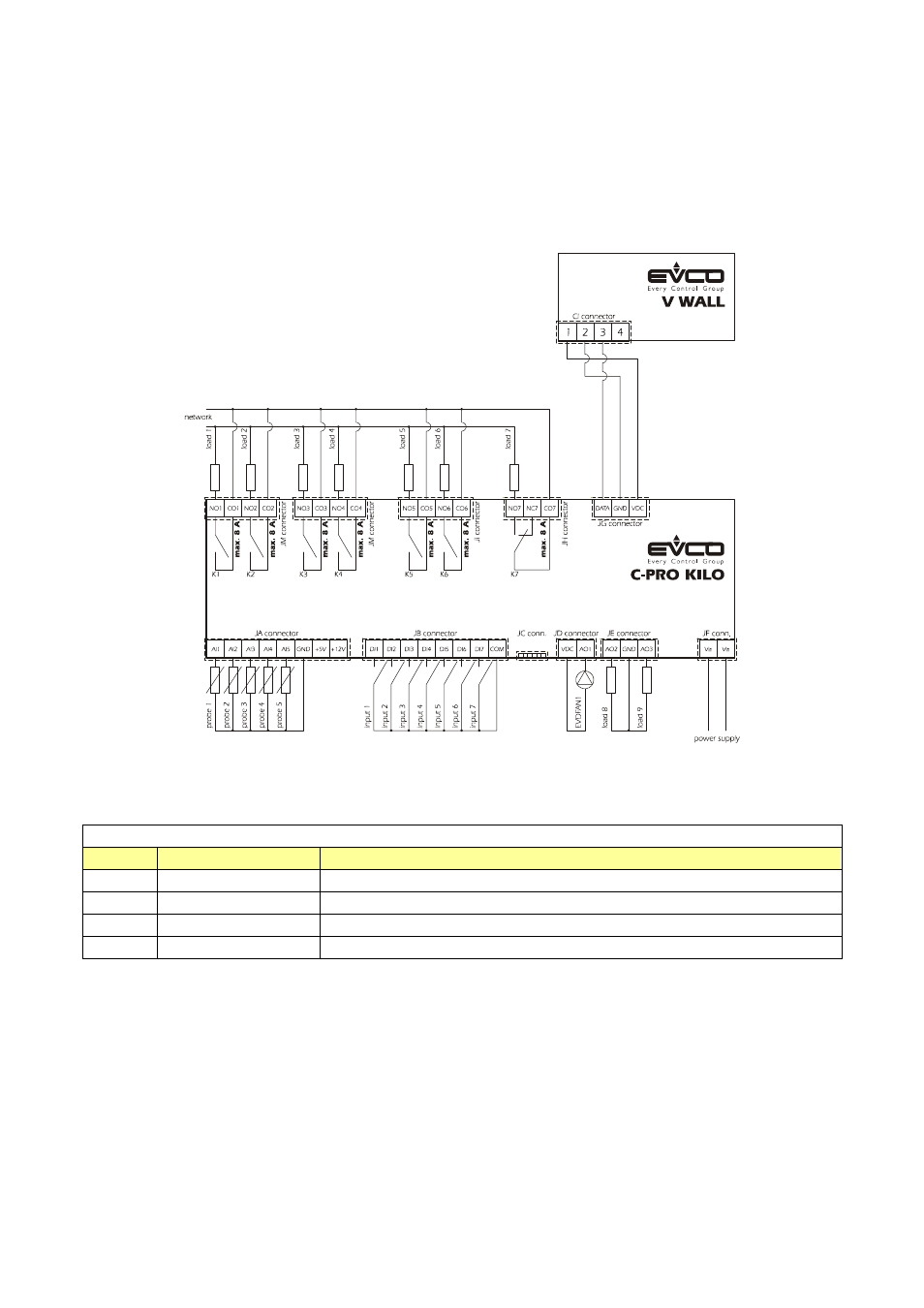

Connecting the C-PRO KILO module to the V WALL module when the user terminal is powered from the
controller
CI connector : Control unit connection connector
Conn. Abbrev. Description
CI-1 1 User terminal power supply (12 VDC)
CI-2 2 Common ground
CI-3 3 EVCO live serial port
CI-4 4 Common ground
