1 c-pro exp kilo electrical connections (wiring) – EVCO c-pro kilo User Manual
Page 28
C-PRO KILO HARDWARE MANUAL
Page 28
5.1
C-PRO EXP KILO electrical connections (wiring)

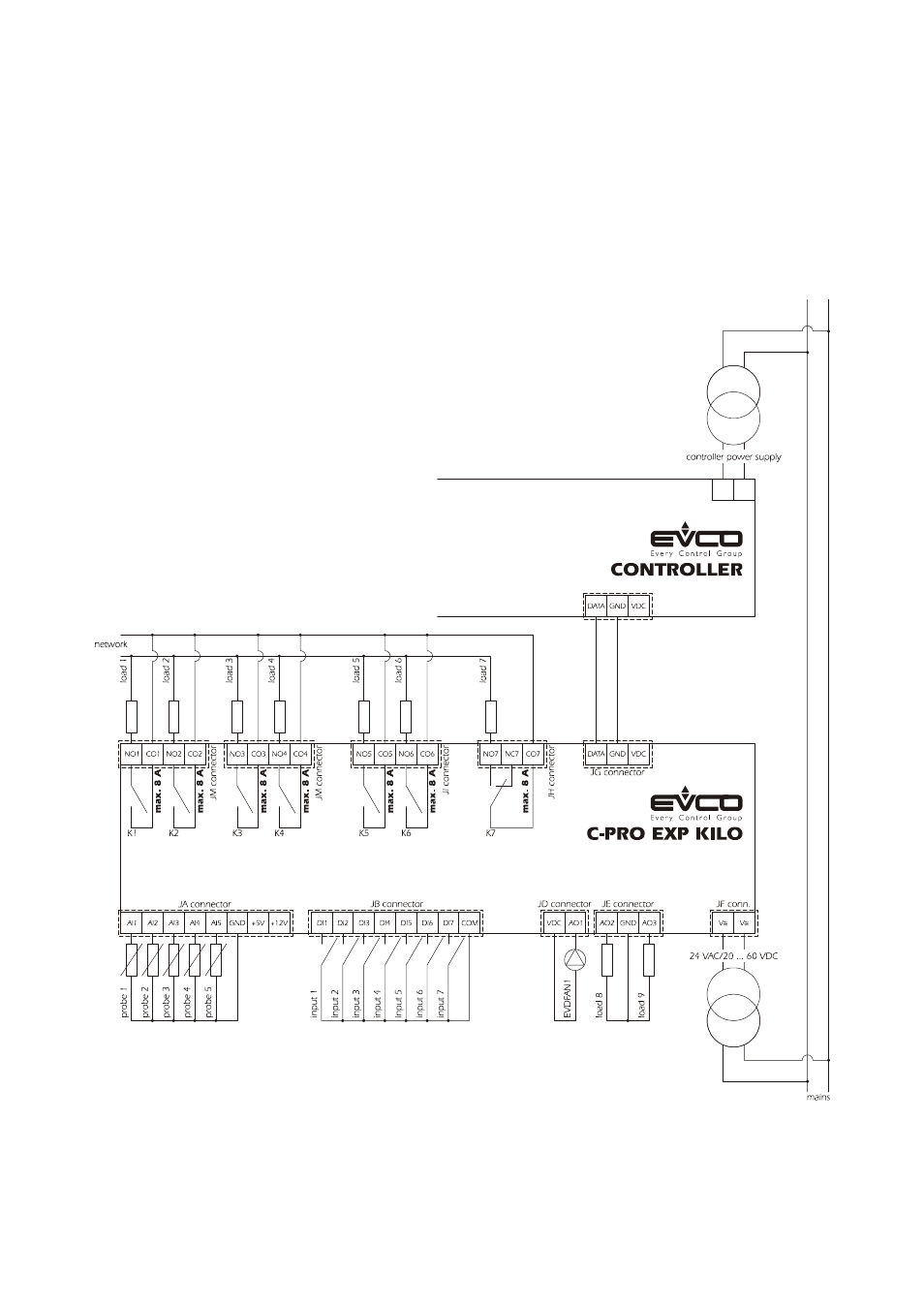

The C-PRO EXP KILO controller wiring layout is shown below, along with tables giving the meanings of the
inputs and outputs.
References to connection cable lengths and the general, technical and electrical characteristics reported in
chapter 3 are also valid for the I/O expansion units.
C-PRO EXP KILO wiring layout
