EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
page 9 of 44
3 DIMENSIONS AND INSTALLATION
3.1 Dimensions:

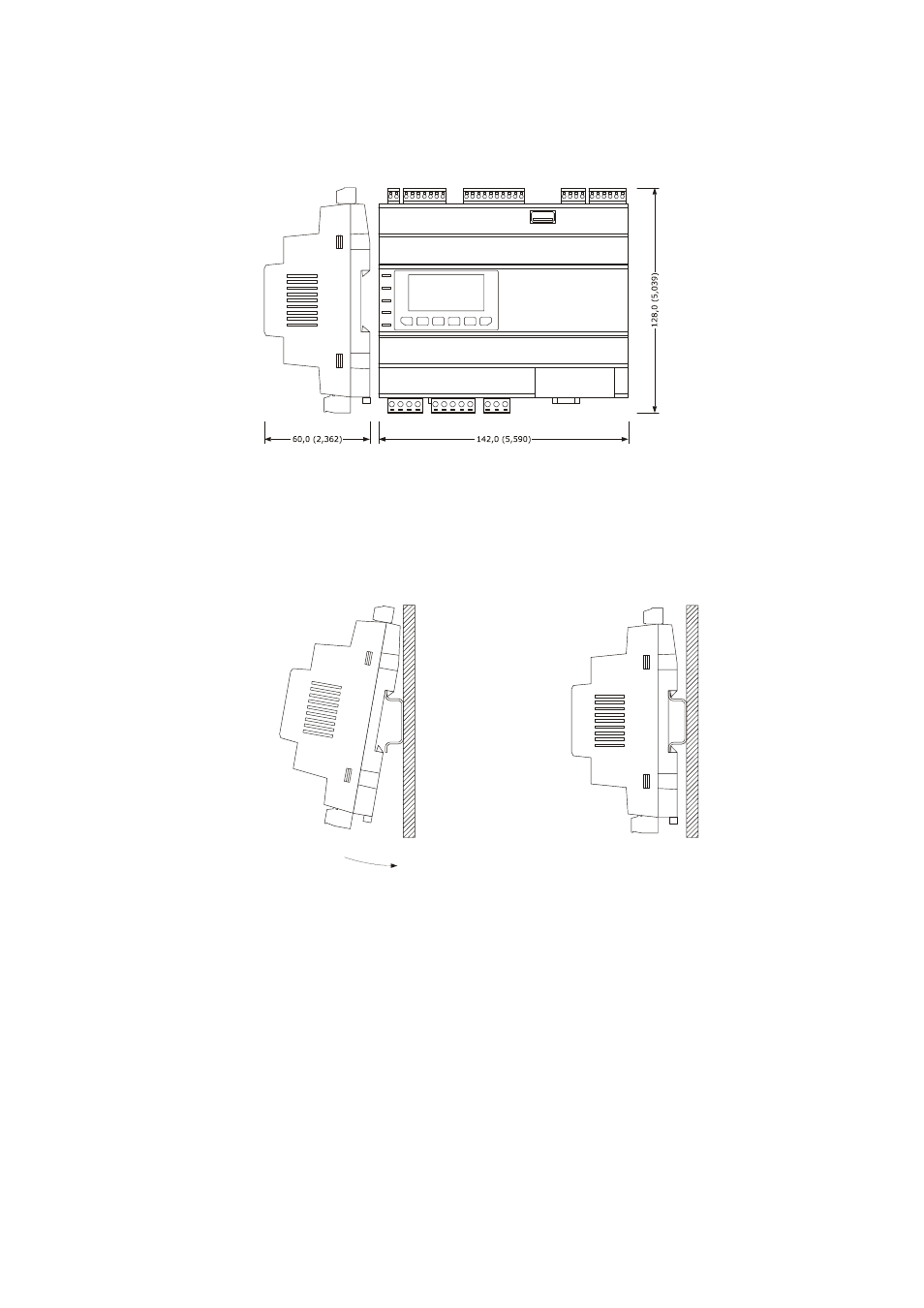

The following drawing shows the measurements of the devices (8 DIN modules), in mm (in).
3.2 Installation
The device is installed on a DIN 35.0 x 7.5 mm (1.377 x 0.295 in) or 35.0 x 15.0 mm (1.377 x 0.590 in), track in a control panel.
To install the devices, please follow the instructions in the drawing below.
1 2
