EVCO S.p.A. c-pro 3 NODE kilo | Hardware manual ver. 1.0 | Code 114CP3NKE104
page 8 of 44
2 DESCRIPTION
2.1 Description

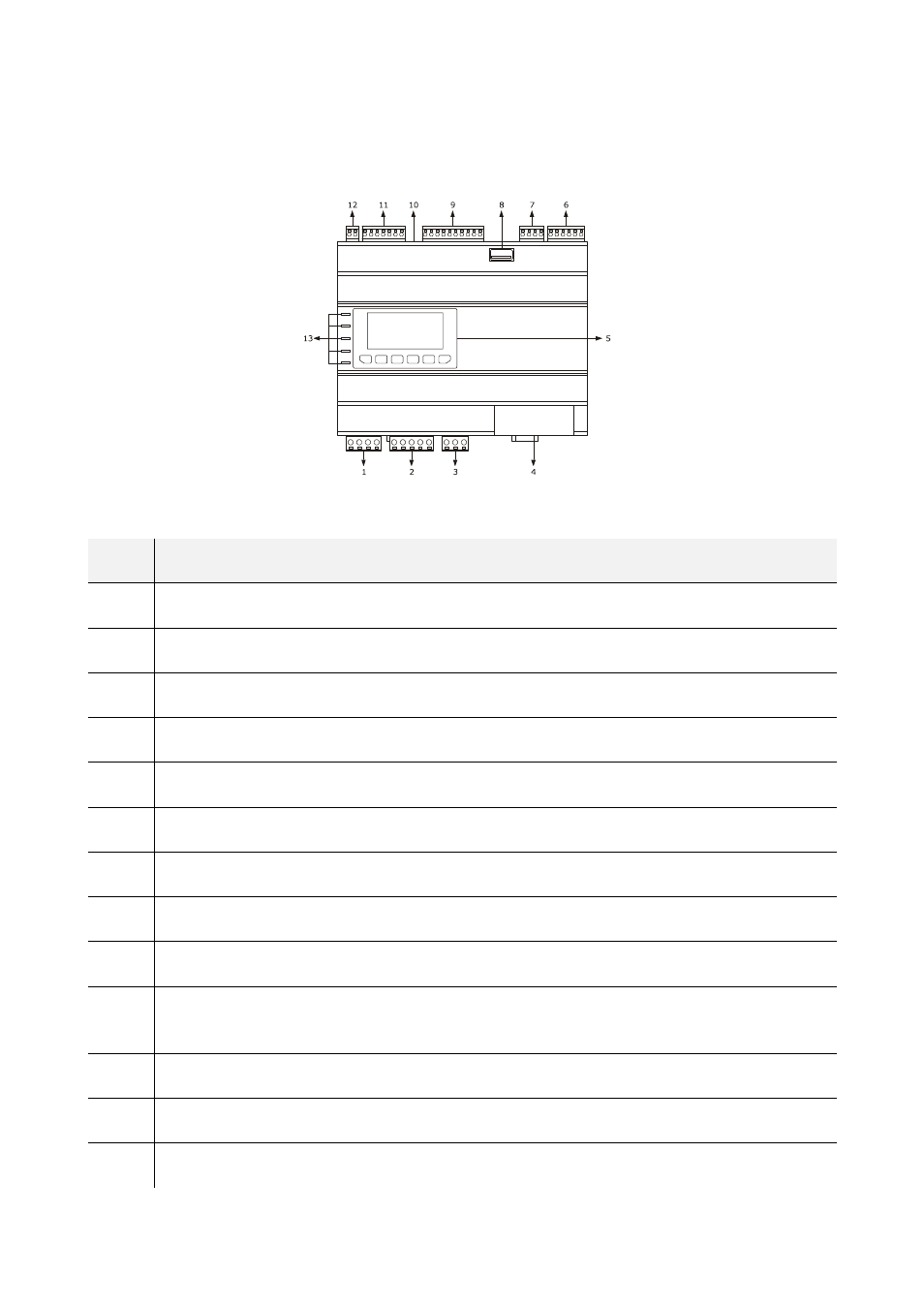

The following drawing shows the appearance of the devices.
The following table shows the meaning of the parts of the devices.
PART MEANING
1 K1 and K2 digital outputs
2 K3, K4, K5 and K6 digital outputs
3 K7 digital outputs
4 Ethernet MODBUS TCP port
5 display and keypad (not available for the blind versions)
6 digital inputs
7 analog outputs
8 USB port
9 analog inputs
10
micro switch activating the Can Canbus terminal port, the RS-485 MODBUS master/slave port and the RS-485 MODBUS
slave port
11 RS-485 MODBUS slave, RS-485 MODBUS master/slave and CAN CANBUS ports
12 power supply
13 signalling LED
For additional information, please refer to the following chapters.
