5. LEVEL ADJUSTMENT

EM1-31059

5. LEVEL ADJUSTMENT

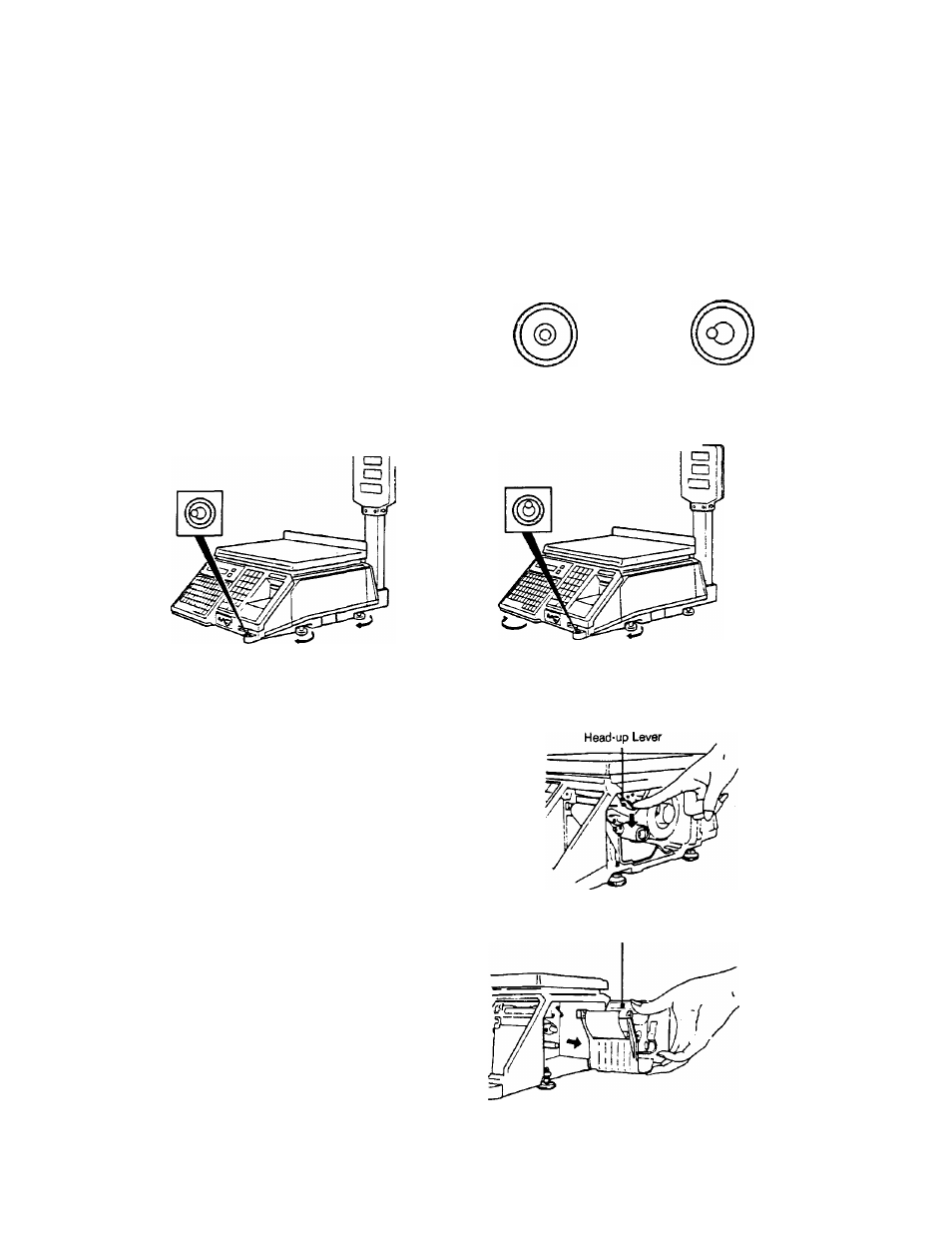

Set the scale on a stable and level surface.
Level the scale by turning the adjustable legs so

that the air bubble is inside the center circle.

Level Gauge

Correct

incorrect

When the air bubble moves toward the left side,
turn the right adjustable legs clockwise.

When the air bubble moves toward rear, turn the
front adjustable legs clockwise.

6. REMOVAL AND REPLACEMENT OF LABEL ROLL

Remove

the

printer

cover

and

right

side

cover. Then push the head-up lever in the

direction indicated by the arrow.

Pull out the label cassette and remove the

core of the label roll and the label backing
paper.

NOTE:

To remove the label backing paper,

loosen the paper by turning the
paper winding shaft

counterclockwise and remove the
paper stopper.

Label Cassette

5- 1
